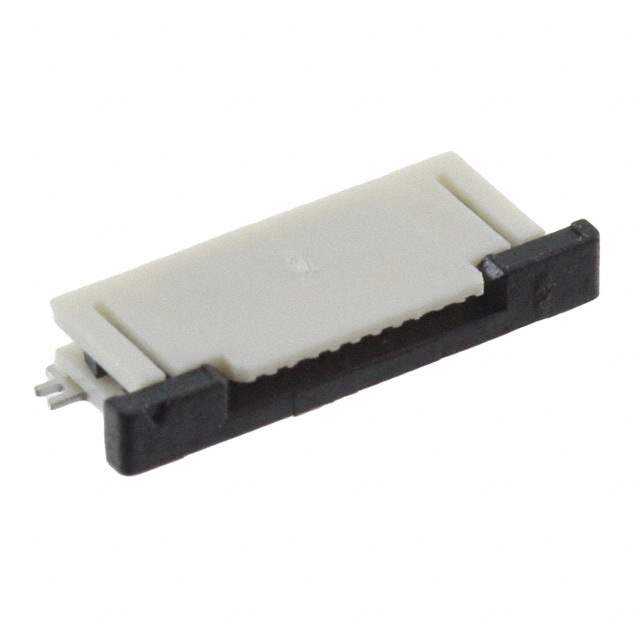

52745-1197 Real Image
Same model may have multiple batches, images only for reference.

52745-1197

Part No 52745-1197
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 11 Circuits, Gold...
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Material Bronze
Mount Surface Mount
Number of Circuits 11
Number of Contacts 11
Number of Positions 11
Number of Rows 1
Orientation Right Angle
Packaging Tape and Reel
Pitch 500 µm
Plating Gold
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 985536-52745-1197
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52745-1197 CAD Model

Description

The Molex, LLC 985536-52745-1197 is a tape and reel packaged FFC/FPC (FlatFlexible) connector with 11 positions and a pitch of 500 µm.

  • Orientation: right angle
  • Mounting: surface mount
  • RoHS Compliant: yes
  • ELV Compliant: yes
  • REACH SVHC: unknown
  • Flammability Rating: UL94 V-0
