Same model may have multiple batches, images only for reference.

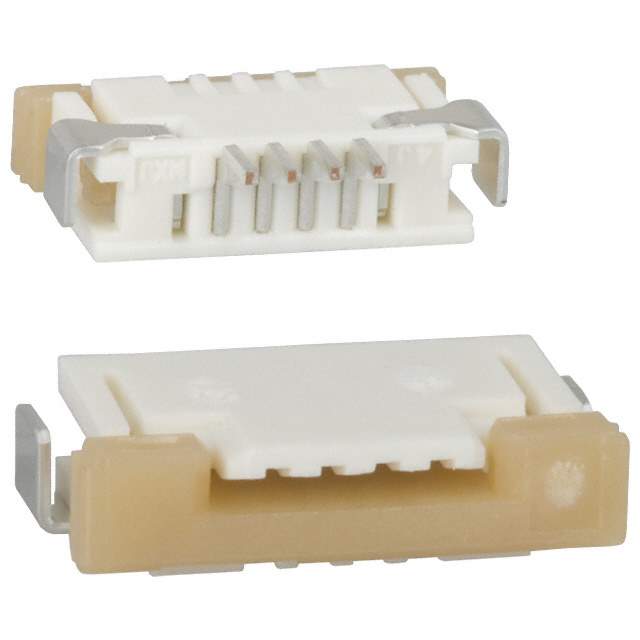

52207-0485 Real Image
Same model may have multiple batches, images only for reference.

52207-0485

Part No 52207-0485
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00MM Ffc/fpc Connectors 1.0MM Ffc/fpc 4 Ckt R/a, SMT, Zif
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Top
Contact Material Bronze, Tin
Contact Plating Tin
Country of Origin MY
Current Rating 1 A
Depth 7.5 mm
Gender Female
Height 2.7 mm
Housing Material Nylon
Insulation Resistance 100 MΩ
Lead Free Lead Free
Lead Pitch 1 mm
Length 10.3 mm
Max Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 4
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape
Pitch 1 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Voltage Rating (DC) 125 V
Width 6.9 mm
Wire/Cable Type Flat Flex
Win Source Part Number 1147455-52207-0485
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 52207-0485 CAD Model

Description

The 1147455-52207-0485 is a FFC/FPC connector manufactured by Molex, LLC.

  • Positions: 4
  • Pitch: 1mm
  • Number of Rows: 1
  • Termination: Solder
  • Contact Material: Bronze, Tin
  • Voltage Rating: 125V
  • Current Rating: 1A
  • Number of Contacts: 4
  • Gender: Female
  • Length: 10.3mm
  • Housing Material: Nylon
  • Number of Circuits: 4
  • Orientation: Right Angle
  • Contact Plating: Tin
  • Height: 2.7mm
  • Width: 6.9mm
  • Packaging: Cut Tape
  • Supply and Demand: Limited
