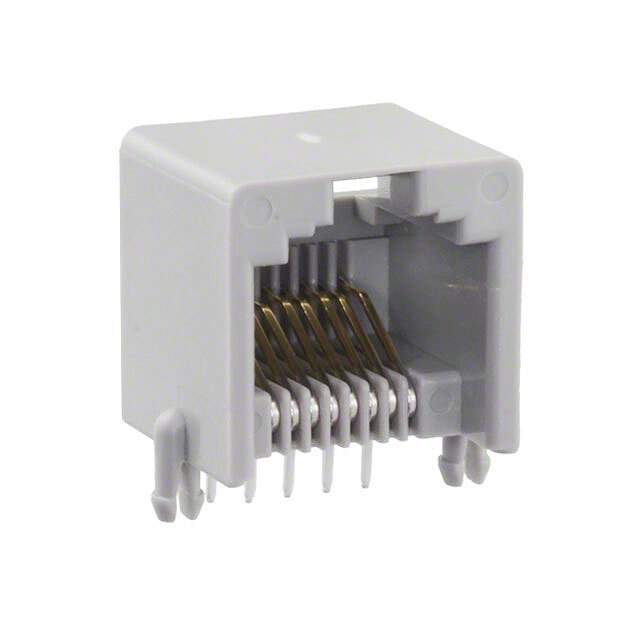

0520188846 Real Image
Same model may have multiple batches, images only for reference.

0520188846

Part No 0520188846
Manufacturer Molex, LLC
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A UNSHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr Molex
Series 52018
Package Tray
Product Status Obsolete
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 80°C
Base Product Number 052018
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349560-0520188846
Ultra Librarian 3D Model Ultra Librarian 0520188846 CAD Model

Description

The 52018 series modular connector jack from Molex is a board lock type jack with a 90-degree angle (right) orientation.

  • Connector Type: Jack
  • Orientation: 90° Angle (Right)
  • Number of Rows: 1
  • Number of Positions / Contacts: 8p8c (RJ45, Ethernet)
  • Shielding: Shielded, Unshielded
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Housing Material: Polyester, Glass Filled
  • Contact Material: Phosphor Bronze
  • Category: Cat3
  • Packaging: Tube
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C ~ 80°C
  • MSL (Moisture Sensitivity Level): 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Standard Package: 50
