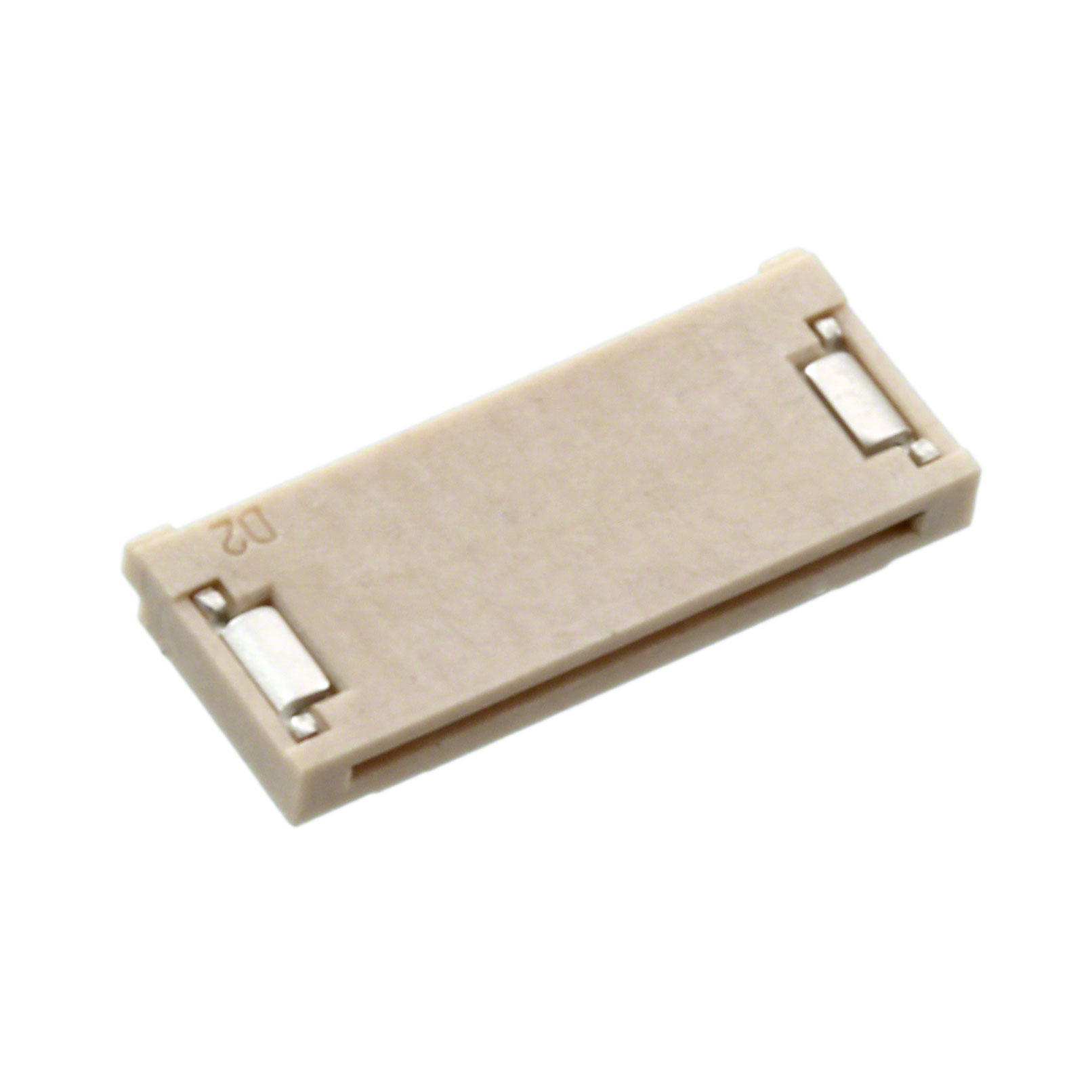

512811494 Molex, LLC
Same model may have multiple batches, images only for reference.

512811494

Part No 512811494
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 14 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
512811494 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family FFC, FPC (Flat Flexible) Connectors
Manufacturer Molex, LLC
Series 51281
Packaging Reel(TR)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 14
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Features Solder Retention
Voltage Rating 50V
Operating Temperature Range -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Win Source Part Number 112890-0512811494
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 512811494 CAD Model

Description

512811494 Description

The 512811494 is designed for optimal performance and versatility, fulfilling the needs of both simple and complex electronic systems. This component promises exceptional durability and efficiency.

  • Applications/Projects:
    • Consumer electronics
    • Automotive systems
    • Medical devices
    • Smart grids
  • Features and Benefits:
    • Wide operating temperature range
    • Exceptional durability and lifespan
    • Highly adaptable for various innovations
    • Structured for minimal electromagnetic interference
  • Additional Details:
    • Supports advanced diagnostic and monitoring features
    • Packed with protective measures for safety assurance
