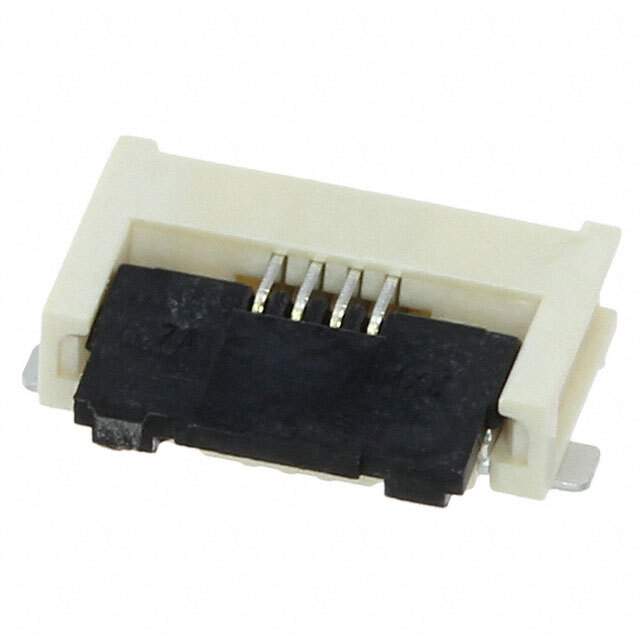

Same model may have multiple batches, images only for reference.

5051100492

Name: 5051100492
Brand: Molex, LLC
SKU: 849647
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5051100492
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 4POS 0.5MM R/A / 4 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Molex, LLC
Series	Easy-On FD19 505110
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	4
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.075" (1.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tabbed, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	1.97µin (0.050µm)
Housing Color	Beige
Actuator Color	Black
Mating Cycles	25
Base Product Number	505110
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	849647-5051100492
Ultra Librarian 3D Model	Ultra Librarian 5051100492 CAD Model

Alternative Products

Description

The Easy-On FD19 505110 is a 4-position FFC, FPC (Flat Flexible) Connector Assembly designed for use in electronic devices.

Pitch: 0.020" (0.50mm)
Termination: Solder
Contact Finish: Gold
Voltage Rating: 50V
Current Rating: 0.5A
Housing Material: Liquid Crystal Polymer (LCP) and Glass-Filled
Locking Feature: Flip Lock and Backlock
Mounting Type: Surface Mount, Right Angle
Temperature Range: -40°C to 105°C
