Same model may have multiple batches, images only for reference.

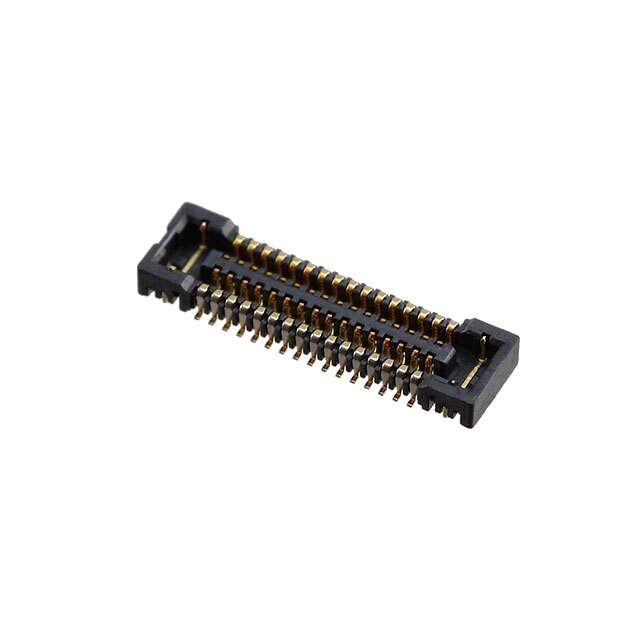

502426-3210-C Real Image
Same model may have multiple batches, images only for reference.

502426-3210-C

Part No 502426-3210-C
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn Board to Board RCP 32 POS 0.4mm Solder ST SMD SlimStack™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Gender Female
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Contacts 32
Orientation Straight
Pitch 400 µm
RoHS Compliant
Termination Solder
Win Source Part Number 976937-502426-3210-C
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502426-3210-C CAD Model

Description

The Molex Solder Connector is an electronic component with a pitch of 400 µm and 32 contacts.

  • Pitch: 400 µm
  • Contacts: 32
  • Gender: Female
  • Orientation: Straight
  • Popularity: Low
  • Alternative Parts: No Alternative Parts
  • Mountable: Surface Mount
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -25 °C
  • Maximum Voltage Rating: 5.05 kV
