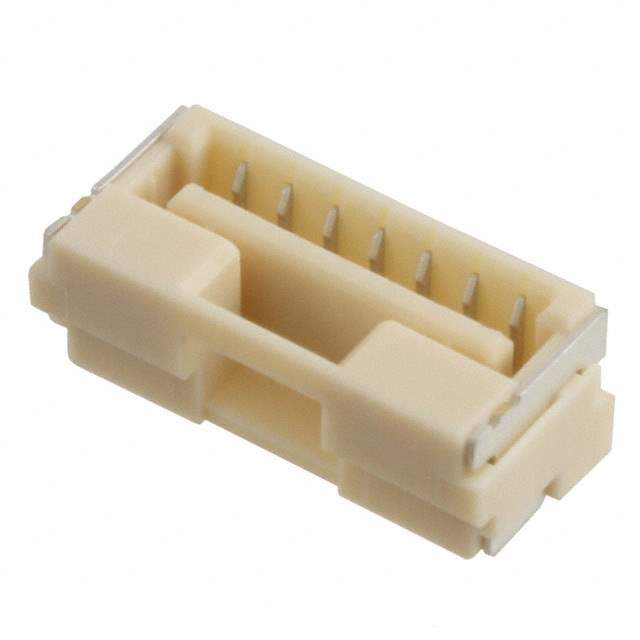

5023820772

Name: 5023820772
Brand: Molex, LLC
SKU: 1380858
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5023820772
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 7POS 0.049 TIN SMD / 7 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr	Molex, LLC
Series	CLIK-Mate 502382
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	7
Number of Positions Loaded	All
Pitch - Mating	0.049" (1.25mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Natural
Insulation Height	0.173" (4.40mm)
Contact Length - Post	-
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	Pick and Place, Solder Retention
Current Rating (Amps)	1A
Voltage Rating	50V
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Shape	-
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	502382
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,400 pcs
Win Source Part Number	1380858-5023820772
Ultra Librarian 3D Model	Ultra Librarian 5023820772 CAD Model

Description

The CLIK-Mate 502382 header is a versatile and reliable connector designed for various electronic applications. Molex, LLC manufactures it.

Number of Positions: 7
Connector Type: Header
Contact Type: Receptacle
Features: Pick and Place, Solder Retention
Mounting Type: Surface Mount
Moisture Sensitivity Level (MSL): Unlimited
Standard Package: 1400 pcs
Application: Automotive, Industrial, General Purpose
