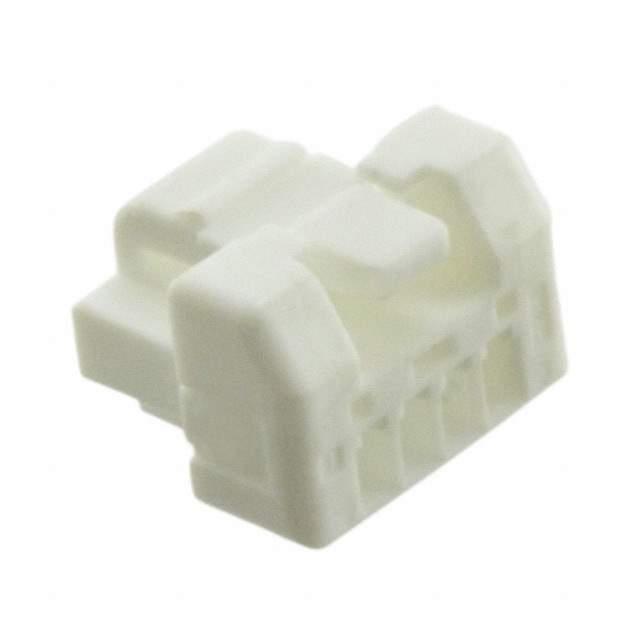

Same model may have multiple batches, images only for reference.

502380-0400

Name: 502380-0400
Brand: Molex, LLC
SKU: 976708
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	502380-0400
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Housing RCP 4 POS 1.25mm Crimp ST Cable Mount Natural Bag/Carton
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Natural
Connector Type	Non-Gendered, Plug
Contact Resistance	20 mΩ
Country of Origin	JP
Current Rating	1 A
Depth	7.05 mm
Fastening Type	Latch
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Color	White
Housing Material	Polybutylene
Insulation Resistance	100 MΩ
Length	8.1 mm
Material	Polybutylene
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	50 V
Max Voltage Rating (DC)	50 V
Min Operating Temperature	-40 °C
Mount	Cable, Free Hanging
Number of Contacts	4
Number of Pins	4
Number of Positions	4
Number of Rows	1
Orientation	Straight
Pitch	1.25 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050
Termination	Crimp
Voltage Rating	50 V
Voltage Rating (AC)	50 V
Weight	149.005094 mg
Width	5.45 mm
Wire/Cable Gauge	28 AWG
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	26 AWG
Win Source Part Number	976708-502380-0400
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 502380-0400 CAD Model

Alternative Products

Description

The Molex 976708-502380-0400 is a 4-pin connector that is designed for use in a variety of electronic applications.

Pins: 4
Pitch: 1.25 mm
Voltage Rating: Up to 50V
Current Rating: 1A
Mounting: Cable, Free-Hanging
