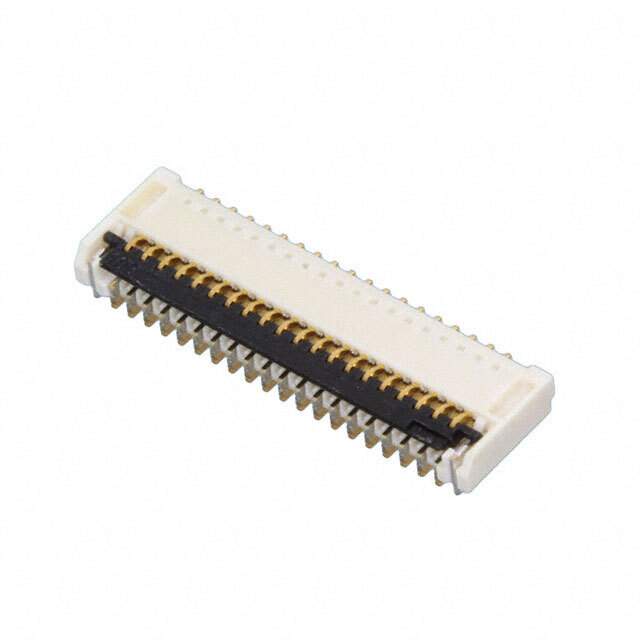

Same model may have multiple batches, images only for reference.

501912-3990

Name: 501912-3990
Brand: Molex, LLC
SKU: 1221893
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	501912-3990
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Conn FPC Connector SKT 39 POS 0.6mm Solder RA SMD Easy-On™ Embossed T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Actuator Material	Glass, Polymer
Contact Location	Bottom
Contact Material	Copper
Contact Plating	Gold
Contact Resistance	80 mΩ
Country of Origin	JP
Current Rating	200 mA
Depth	3.85 mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Housing Color	Black
Housing Material	Polymer
Length	13.8 mm
Material	Thermoplastic
Max Operating Temperature	85 °C
Max Voltage Rating (AC)	50 V
Max Voltage Rating (DC)	50 V
Min Operating Temperature	-20 °C
Mount	Surface Mount
Number of Circuits	39
Number of Contacts	39
Number of Positions	39
Number of Rows	1
Orientation	Right Angle
Packaging	Tape & Reel (TR)
Pitch	600 µm
Plating	Gold
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Stackable	No
Termination	Solder
Voltage Rating	50 V
Win Source Part Number	1221893-501912-3990
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 501912-3990 CAD Model

Alternative Products

Description

This electronic component is a FFC/FPC (Flat Flexible) Connector manufactured by Molex, LLC.

Win Source Part Number: 1221893-501912-3990
Package: Tape & Reel (TR)
Positions: 39
Rows: 1
Pitch: 600 µm
Termination: Solder
Contact Plating: Gold
Housing Color: Black
Voltage Rating: 50 V
Current Rating: 200 mA
Contact Resistance: 80 mΩ
Material: Thermoplastic
Supply and Demand: Limited
RoHS: Compliant
Flammability Rating: UL94 V-0
