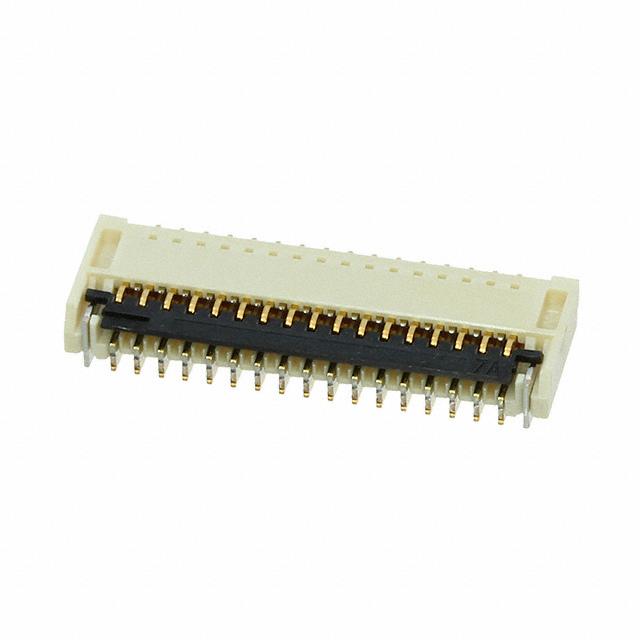

Same model may have multiple batches, images only for reference.
501912-3390 Molex, LLC
Same model may have multiple batches, images only for reference.

501912-3390

Part No 501912-3390
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 33POS 0.30MM R/A
Datasheet
501912-3390 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 33
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Polymer, Glass Filled
Actuator Material Polymer, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -20°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Mating Cycles 20
Win Source Part Number 1005891-501912-3390
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 501912-3390 CAD Model

Description

The Molex Connector Corporation 1005891-501912-3390 is a 33-position FPC connector with a pitch of 0.012" (0.30mm).

  • Number of Positions: 33
  • Pitch: 0.012" (0.30mm)
  • Contact Finish: Gold
  • Locking Feature: Flip Lock
  • Housing Material: Polymer, Glass-Filled (UL94 V-0)
  • Mounting Type: Surface Mount, Right Angle
  • Suitable for: Flat Flex FPC and FFC, FCB thickness of 0.20mm
  • Voltage Rating: 50V
  • Current Rating: 0.2A
  • Operating Temperature Range: -20°C to 85°C
  • Mating Cycle: 20 times
