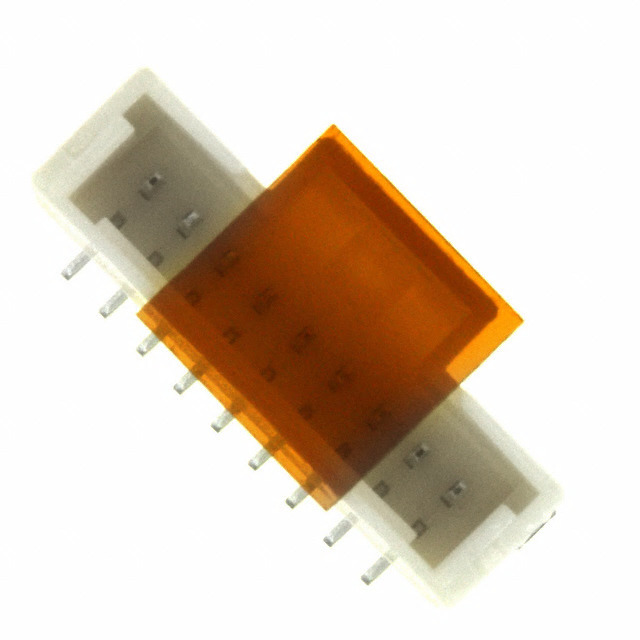

The 501331-0907 is a SlimStack™ 0.50mm Pitch Board-to-Board Connector manufactured by Molex, LLC. This connector is designed for high-density applications requiring space-saving solutions. The SlimStack™ series offers a low profile and narrow width, making it ideal for compact electronic devices. Its robust design ensures reliable electrical performance in demanding environments.

Applications

• Mobile Phones
• Tablets
• Wearable Devices
• Digital Cameras
• Notebook Computers
• Smart Cards

Features

• 0.50mm Pitch
• SlimStack™ Design
• 90 Circuits
• Surface Mount Technology (SMT)
• Low Profile
• High-Temperature Thermoplastic Housing
• Secure Locking Mechanism

Benefits

• Space Saving
• High Density Connection
• Reliable Electrical Performance
• Easy Assembly
• Durable Construction
• Secure Mating
• Suitable for Automated Manufacturing

Additional Details

The Molex 501331-0907 SlimStack™ connector provides a high-density, board-to-board connection with a fine 0.50mm pitch. It features 90 circuits, allowing for a large number of signal lines to be connected in a small area. The SlimStack™ design provides a low profile, minimizing the overall height of the connection. The connector is designed for surface mount technology (SMT), which simplifies assembly and reduces manufacturing costs. The housing is made from high-temperature thermoplastic, allowing it to withstand high soldering temperatures during the SMT process. A secure locking mechanism ensures a reliable and stable connection, preventing accidental disconnections. This connector is commonly used in mobile phones, tablets, and other compact electronic devices where space is limited. Its high density and reliable performance make it an excellent choice for demanding applications. The design is optimized for automated manufacturing processes, ensuring consistent quality and reducing assembly time.
