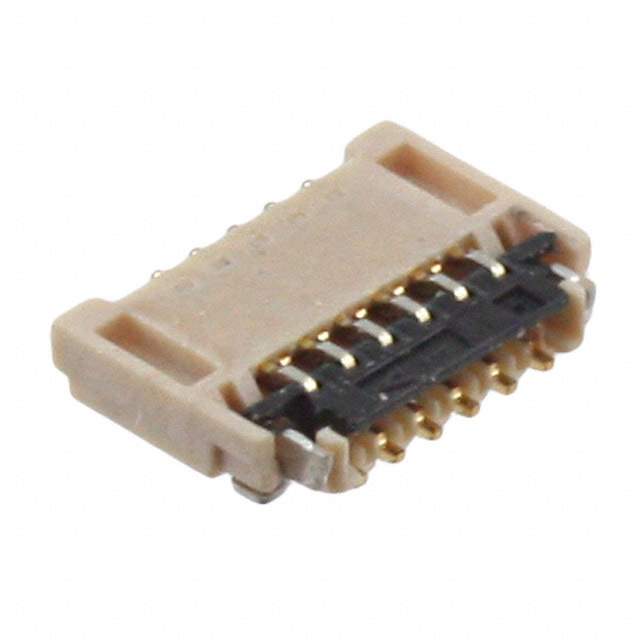

5007971194 Real Image
Same model may have multiple batches, images only for reference.

5007971194

Part No 5007971194
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.30mm (.012") Pitch Easy-On™ Type FPC Connector | CONN FPC BOTTOM 11POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Status Obsolete
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 11
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.041" (1.05mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA46), Nylon 4/6
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128917-5007971194
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5007971194 CAD Model

Description

The Molex electronic component is a limited supply and demand item with medium popularity. The product is a 1128917-5007971194 model with a manufacturer homepage of www.molex.com. The product is suitable for various applications, and it is a high-quality electronic component. The product features a solder retention, zero insertion force (ZIF), and a voltage rating of 50V. The connector/contact type is contacts, bottom, and the FFC, FCB thickness is 0.20mm. The product is obsolete and has a limited supply and demand status.
