Same model may have multiple batches, images only for reference.

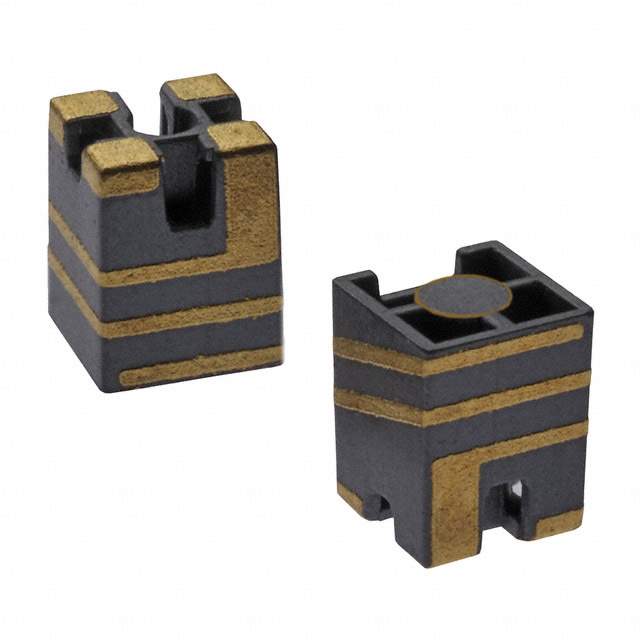

479480001 Real Image
Same model may have multiple batches, images only for reference.

479480001

Part No 479480001
Manufacturer Molex, LLC
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.483.5GHz 3dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Molex
Series 47948
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.483.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -9dB
Gain 3dBi
Power - Max 2 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.157" (4.00mm)
Applications Bluetooth, WLAN, Zigbee™
Base Product Number 047948
Other Names 47948-0001,047948-0001,WM4893TR,WM4893CT,479480001,WM4893DKR
Standard Package 1,800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Win Source Part Number 1236188-479480001
Ultra Librarian 3D Model Ultra Librarian 479480001 CAD Model

Description

The 1236188-479480001 is an RF antenna from Molex.

  • Series: 47948
  • Frequency Range: 2.4GHz to 2.483.5GHz
  • Maximum Power: 2W
  • Return Loss: -9dB
  • Height: 0.157 inches
  • Standard Package: 1,800
  • Mounting Type: SMD (SMT)
  • Gain: 3dBi
  • Applications: Bluetooth, WLAN, and Zigbee™
