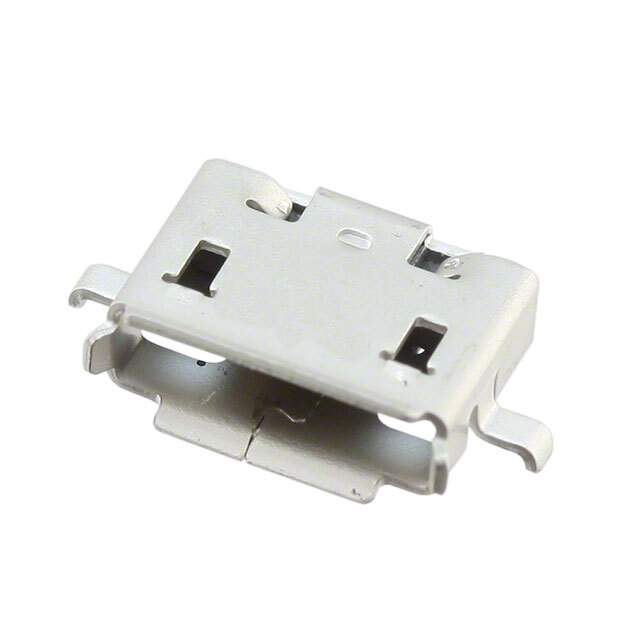

47654-0001 Real Image
Same model may have multiple batches, images only for reference.

47654-0001

Part No 47654-0001
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Micro-USB AB Receptacle, Right Angle, Mid-Mount, SMT, with Extended Solder Tabs, Lead-Free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, USB
Contact Plating Gold
Country of Origin CN
Current Rating 1.5 A
Depth 6.8 mm
Gender Female
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Length 10.13 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 100 V
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 13
Number of Contacts 5
Number of Ports 1
Number of Positions 5
Number of Rows 1
Number of Terminals 5
Orientation Right Angle, Vertical
Pitch 650 µm
Plating Gold
REACH SVHC Unknown
RoHS Compliant
Termination Solder
USB Standard USB 2.0
Voltage Rating (AC) 30 V
Win Source Part Number 1204379-47654-0001
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 47654-0001 CAD Model

Description

The Molex Receptacle USB Connector is a female connector with a solder termination.

  • Contacts: five
  • Orientation: right angle and vertical
  • Housing Material: thermoplastic
  • Circuits: 13
  • RoHS: compliant
  • Standard: USB 2.0 standards
  • Current Rating: 1.5 A
  • Voltage Rating: 30 V (AC) and 100 V (AC) respectively
  • Depth: 6.8 mm
  • Mounting: surface mountable
  • Color: black
