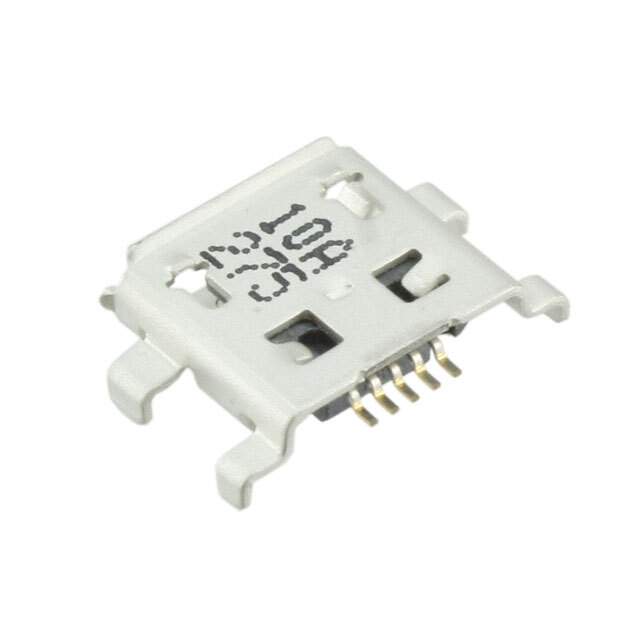

47642-0001

Name: 47642-0001
Brand: Molex, LLC
SKU: 987862
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	47642-0001
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	Conn Mini-USB Type AB RCP 5 POS 0.8mm Solder ST Thru-Hole 5 Terminal 1 Port Box/Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Connector Type	Receptacle, USB
Contact Material	Gold
Contact Plating	Gold
Country of Origin	CN
Current Rating	1.8 A
Gender	Female
Halogen Free	Low Halogen
Height	3.19 mm
Housing Material	Polymer
Length	10.2 mm
Maximum Operating Temperature	85 °C
Min Operating Temperature	-30 °C
Mount	Surface Mount, Through Hole
Number of Circuits	5
Number of Contacts	5
Number of Ports	1
Number of Rows	1
Number of Terminals	5
Orientation	Right Angle
Pitch	650 µm
Plating	Gold
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050, 8536695050
Termination	Solder
USB Standard	USB 2.0
Voltage Rating	30 V
Voltage Rating (AC)	30 V
Win Source Part Number	987862-47642-0001
Categories	USB,DVI,HDMI Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 47642-0001 CAD Model

Description

The Molex 987862-47642-0001 is a USB receptacle connector with a pitch of 650µm.

Connector Type: USB Receptacle
Pitch: 650µm
Contacts: 5
Gender: Female
Voltage Rating: 30V
Current Rating: 1.8A
Orientation: Right-angled
Height: 3.19mm
Contact Material: Gold plated
Termination: Solder
Housing Material: Polymer
Halogen-Free: Yes
RoHS Compliant: Yes
Applications: Consumer electronics, mobile devices, and computers
