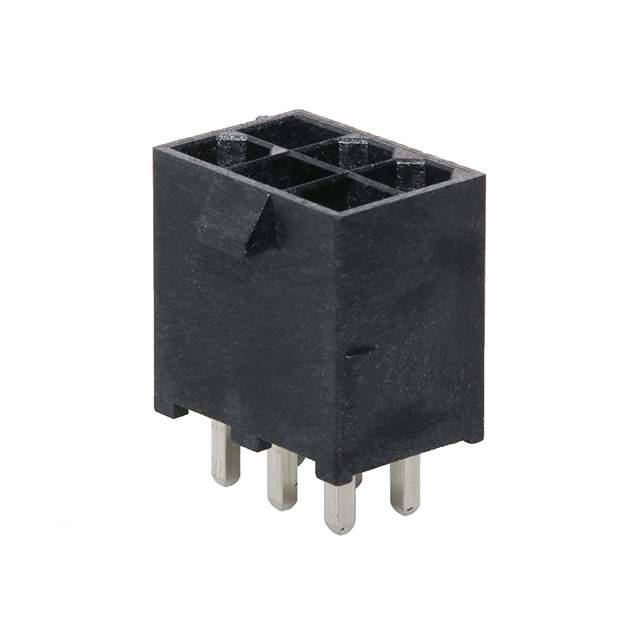

462071006 Real Image
Same model may have multiple batches, images only for reference.

462071006

Part No 462071006
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description MINI-FIT JR LCP VERT. HDR NOPEG
Datasheet
462071006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Mini-Fit Jr 46207
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.144" (3.66mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Industrial, Telecommunications
Win Source Part Number 763691-462071006
Popularity Medium
Supply and Demand Status Limited
Family Name 46207
Introduction Date May 16, 2010
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 462071006 CAD Model

Description

The Molex Mini-Fit Jr 46207 series header is a two-row, six-position through-hole connector with a locking ramp for secure mating.

  • Rows: 2
  • Positions: 6
  • Connector Type: Male Pin
  • Pitch: 0.165 inches (4.20mm)
  • Contact Material: Brass
  • Contact Finish: Tin (100μin / 2.54μm)
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Insulation Color: Black
  • Applications: General-Purpose, Industrial, Telecommunications
  • Flammability Rating: UL94 V-0
  • Halogen Free: Yes
  • Positions Loaded: All
  • Supply and Demand Status: Limited
