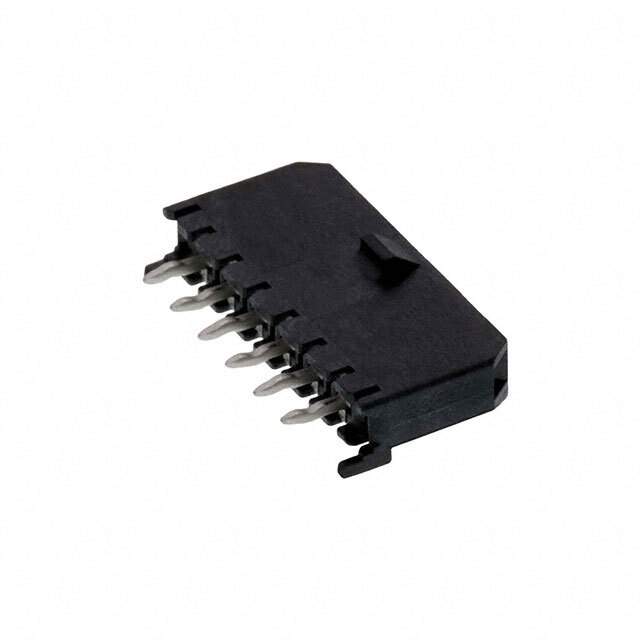

0436500616 Real Image
Same model may have multiple batches, images only for reference.

0436500616

Part No 0436500616
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 3MM / Connector Header Through Hole 6 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 436500616-E,0436500616-E,436500616,043650-0616-E,436-50-0616-P,43650-0616,043650-0616,43650-0616-E,WM1926-NDR,WM1926,43650-0616-TR60,43650-0616-TR90
Standard Package 1,530
Win Source Part Number 1333007-0436500616
Ultra Librarian 3D Model Ultra Librarian 0436500616 CAD Model

Description

The Molex 1333007-0436500616 is a 6-position male pin header connector with a locking ramp.

  • Mated Stacking Height: 17.56mm
  • Contact Material: Brass
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Pitch: 0.118 inches
  • Application: Board-to-Cable/Wire
  • Fields: General Purpose, Medical, Military, and Telecommunications
  • Feature: Board Guide
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
  • Contact Shape: Square
  • Contact Length: 0.125 inches
  • Insulation Height: 0.390 inches
  • Material Flammability: UL94 V-0
  • Package: Tray
  • Package: 1,530
