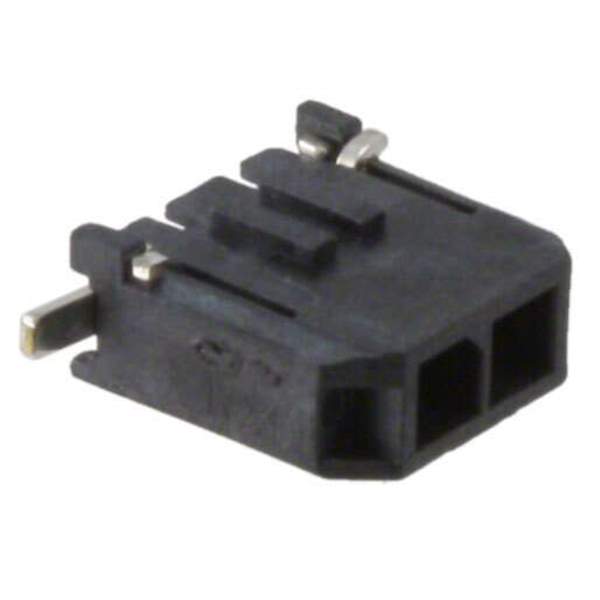

0436500225

Name: 0436500225
Brand: Molex, LLC
SKU: 1332599
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0436500225
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 2POS 3MM / Connector Header Surface Mount 2 position 0.118" (3.00mm)
Datasheet	0436500225 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.390" (9.91mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Mated Stacking Heights	17.56mm
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	043650
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM3813TR,WM3813DKRINACTIVE,436500225,WM2638DKR,43650-0225,WM2638TR,WM3813CT-ND,WM3813CT,WM3813TR-ND,WM2638CT,WM3813DKR,WM3813TRINACTIVE,WM3813CTINACTIVE,WM3813DKR-ND
Standard Package	200
Win Source Part Number	1332599-0436500225
Ultra Librarian 3D Model	Ultra Librarian 0436500225 CAD Model

Description

The Molex 1332599-0436500225 is a male header connector housing.

Number of Positions: 2
Number of Rows: 1
Pitch: 0.118" (3.00mm)
Style: board to cable/wire
Contact Type: male pin
Termination: solder
Applications: general purpose, medical, military, and telecommunications
Contact Material: brass
Contact Finish: gold
Insulation Material: liquid crystal polymer (LCP), glass filled
Flammability Rating: UL94 V-0
RoHS Compliant: Yes
Temperature Range: -40°C to 105°C
Packaging: reel - TR
Standard Package: 200
