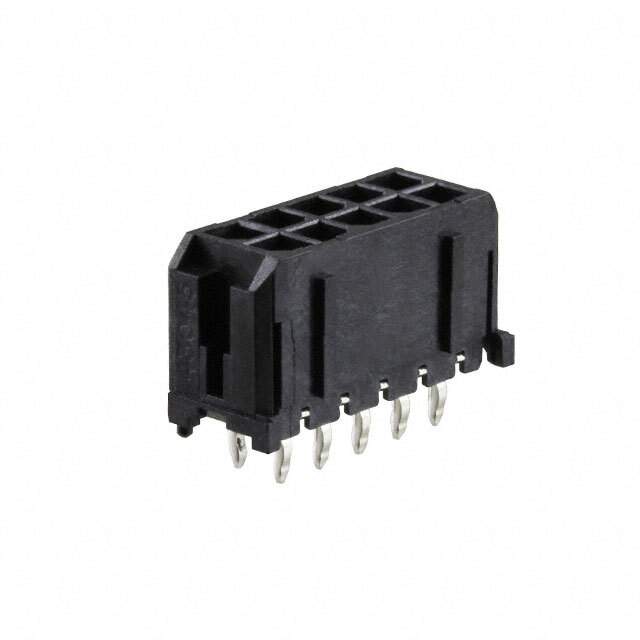

The Molex 43045-1012 is a Micro-Fit 3.0 connector housing, specifically designed for applications requiring a compact and reliable wire-to-board connection solution. As part of the Micro-Fit 3.0 series, this housing provides secure mating and protection for electrical contacts in space-constrained environments. The design focuses on ease of assembly and robust performance, ensuring long-term reliability.

Applications

• Consumer electronics
• Industrial automation
• Telecommunications equipment
• Medical devices
• Automotive electronics
• Power supplies

Features

• Compact size: Ideal for applications where space is limited.
• Polarization: Ensures proper mating to prevent incorrect connections.
• Positive locking: Provides a secure connection that resists accidental disconnections.
• Durable material: Designed to withstand harsh environmental conditions.
• Multiple circuits: Supports a variety of circuit configurations.
• Easy assembly: Simplifies the manufacturing process.

Benefits

• Space saving: Allows for higher density packaging.
• Reliable connection: Minimizes the risk of failures.
• Improved safety: Provides insulation and protection.
• Reduced downtime: Secure connections reduce maintenance.
• Simplified manufacturing: Easy to assemble.
• Cost-effective: Provides a good balance of performance and price.

Additional Details

The Micro-Fit 3.0 connector system utilizes a 3.0mm pitch, offering a balance between size and current carrying capability. The 43045-1012 is designed to be used with compatible Micro-Fit 3.0 crimp terminals (e.g., 43031 series) and mates with corresponding headers on the PCB. Key specifications such as voltage and current ratings, operating temperature range, and material properties are available in the Molex datasheet. Ensure proper crimping tools and techniques are used for optimal performance. The "10" in the part number indicates it's a 10-circuit housing. Check the Molex website or authorized distributors for the latest information and application notes.
