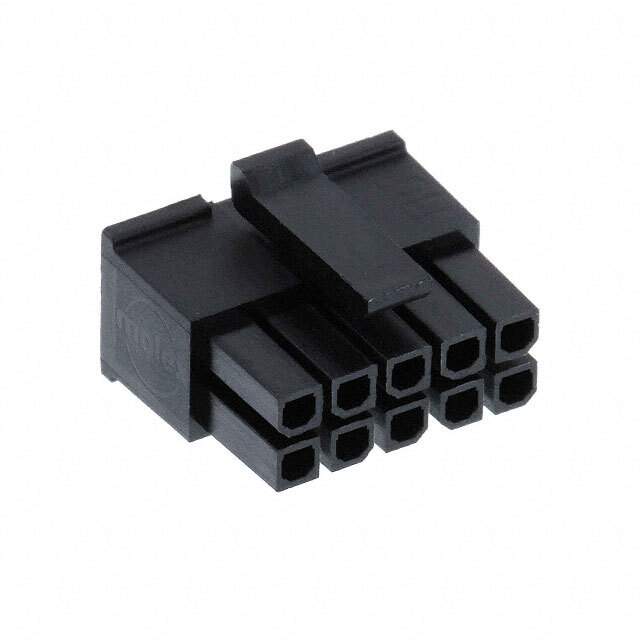

Same model may have multiple batches, images only for reference.

43025-1000

Name: 43025-1000
Brand: Molex, LLC
SKU: 1001410
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43025-1000
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Micro-Fit 3.0 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen, Black
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CSA, TUV, UL
Color	Black
Connector Type	Power, Rectangular, Socket
Contact Material	Bronze
Contact Plating	Tin
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	5 A
Depth	14 mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	14.25 mm
Housing Color	Black
Housing Material	Polyester
Lead Free	Yes
Length	15.85 mm
Material	Polyester
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	600 V
Max Voltage Rating (DC)	600.6 kV
Min Operating Temperature	-40 °C
Mount	Cable, Free Hanging
Number of Circuits	10
Number of Contacts	10
Number of Pins	10
Number of Poles	10
Number of Positions	10
Number of Rows	2
Orientation	Straight
Packaging	Bulk
Pitch	3 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Row Spacing	3 mm
Schedule B	8536695050, 8536695050
Termination	Crimp
Voltage Rating	250 V
Voltage Rating (AC)	250 V
Voltage Rating (DC)	250 V
Width	11.56 mm
Working Voltage	250 V
Win Source Part Number	1001410-43025-1000
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 43025-1000 CAD Model

Alternative Products

Description

This Molex Connector is part of the circular connectors - housings category.

Category: Circular connectors - housings
Win Source Part Number: 1001410-43025-1000
Package: Bulk
Contacts: 10
Circuits: 10
Orientation: Straight
Voltage Rating: 250 V
Current Rating: 5 A
RoHS Compliant: Yes
Popularity: Low
Supply and Demand: Shortage
