Same model may have multiple batches, images only for reference.

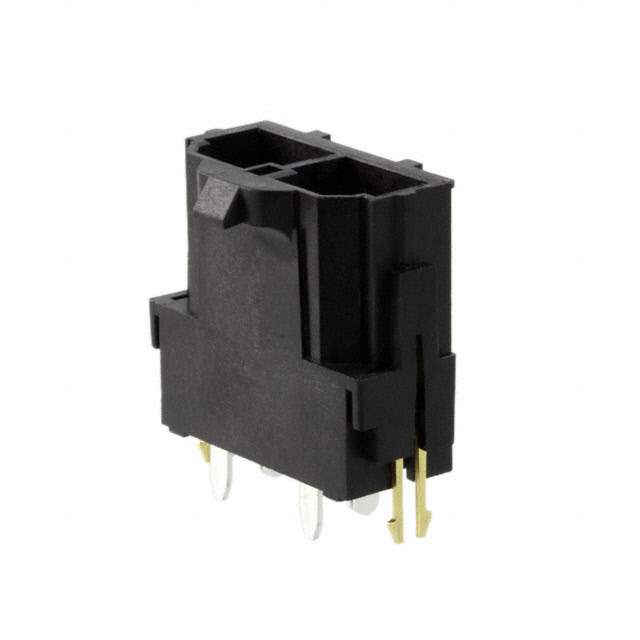

0428192213 Real Image
Same model may have multiple batches, images only for reference.

0428192213

Part No 0428192213
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 10MM / Connector Header Through Hole 2 position 0.394" (10.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Fit Sr 42819
Package Tray
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.394" (10.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.827" (21.00mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Zirconium Alloy
Insulation Material Polyamide (PA46) , Nylon 4/6, Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 042819
Standard Package 1,872
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351469-0428192213
Ultra Librarian 3D Model Ultra Librarian 0428192213 CAD Model

Description

The Molex Mini-Fit Sr 42819 series is a header connector with a pitch of 0.394" (10.00mm) and 2 positions.

  • Pitch: 0.394" (10.00mm)
  • Number of Positions: 2
  • Connector Type: Header
  • Contact Type: Male Blade
  • Number of Rows: 1
  • All Positions Loaded: Yes
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Mounting Type: Through Hole
  • Features: Shrouded 4-Wall
  • Contact Material: Copper Zirconium Alloy
  • Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
  • Insulation Color: Black
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Application: Automotive, Telecommunications, and Medical
