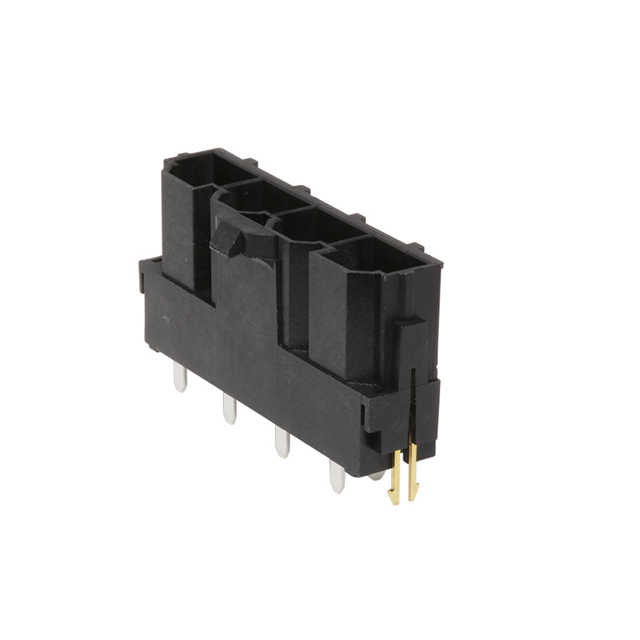

42819-4232 Real Image
Same model may have multiple batches, images only for reference.

42819-4232

Part No 42819-4232
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, PCB Mount, RECEPT, 4 Contacts, PIN, 0.394 Pitch, PC TAIL Terminal, POLARIZED LCK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Plating Tin
Contact Resistance 1.5 mΩ
Country of Origin US
Current Rating 43 A
Depth 14.1 mm
Fastening Type Ramp
Housing Color Black
Housing Material Nylon
Lead Pitch 10 mm
Length 43.82 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Ports 1
Number of Positions 4
Number of Rows 1
Number of Terminals 4
Orientation Vertical
Pitch 10 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating (DC) 600 V
Win Source Part Number 1159924-42819-4232
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 42819-4232 CAD Model

Description

This male pin connector from Molex has a part number of 1159924-42819-4232.

  • Part: 1159924-42819-4232
  • Manufacturer: Molex
  • Positions: 4
  • Pitch: 10mm
  • Color: Black
  • Mounting: Through-hole
  • Fastening Type: Ramp
  • Current Rating: 43A
  • Contact Resistance: 1.5mΩ
  • Contact Material: Brass
  • Housing Material: Nylon
  • Voltage Rating: 600V
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105°C
  • Minimum Operating Temperature: -40°C
