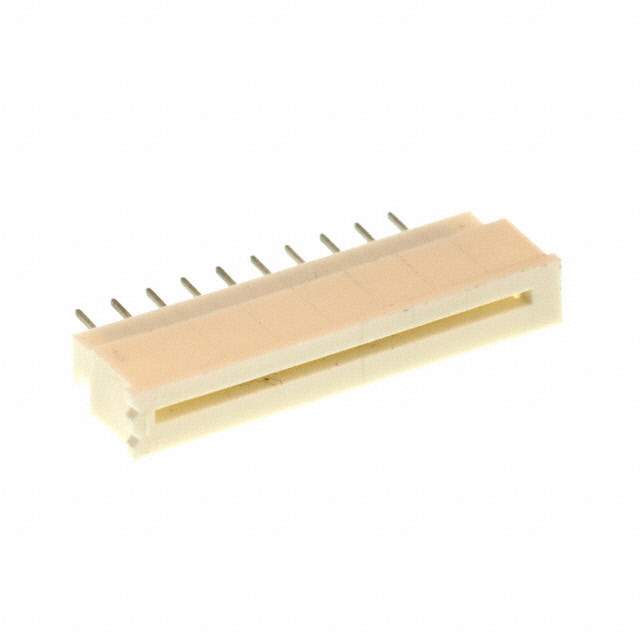

Same model may have multiple batches, images only for reference.

0039532205

Get a Quote

Part No	0039532205
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC VERT 20POS 1.25MM PCB / 20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.049" (1.25mm) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Molex
Packaging	Tray
Flat Flex Type	FFC, FPC
Mounting	Through Hole
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	20
Pitch	0.049" (1.25mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.295" (7.50mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Housing Material	Polybutylene Terephthalate (PBT), Polyester
Actuator Material	Polybutylene Terephthalate (PBT), Polyester
Features	Zero Insertion Force (ZIF)
Voltage Rating	200V
Temperature Range - Operating	-20°C ~ 80°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	39.4µin (1.00µm)
Mating Cycles	30
Base Product Number	003953
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	WM2864,0039-53-2205,39-53-2205,39532205,5597-20CPB7F
Standard Package	700
Win Source Part Number	1333374-0039532205
Ultra Librarian 3D Model	Ultra Librarian 0039532205 CAD Model

Alternative Products

Description

The Molex 1333374-0039532205 is a 20-position FFC/FPC (Flat Flexible) connector assembly with a zero insertion force (ZIF) feature.

Pitch: 0.049 inches (1.25mm)
Termination: Crimp
Contact Finish: Solder, Tin Bismuth
Contact Finish Thickness: 39.4µin (1.00µm)
Contact Material: Phosphor Bronze
Insulation Height: 0.295 inches (7.50mm)
FFC/FPC Thickness: 0.30mm
Locking Feature: Slide Lock
Cable End Type: Straight
Housing and Actuator Materials: Polybutylene Terephthalate (PBT) and Polyester
Material Flammability Rating: UL94 V-0
Packaging: Tray
Standard Package: 700
