Same model may have multiple batches, images only for reference.

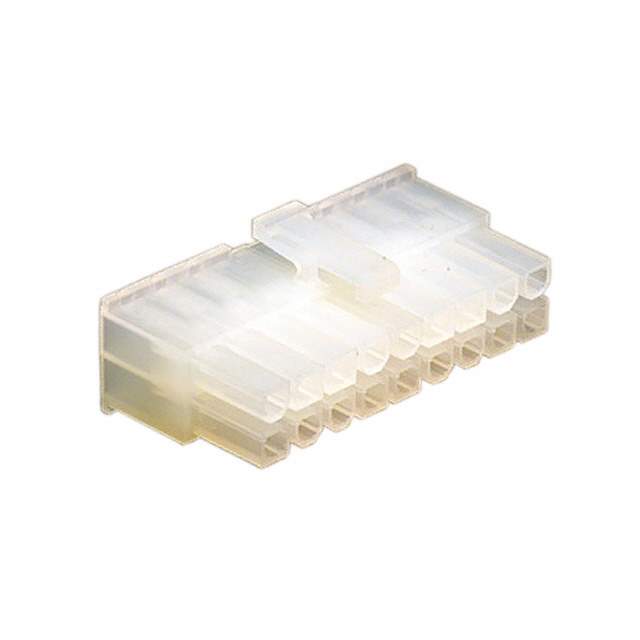

39-01-2185 Real Image
Same model may have multiple batches, images only for reference.

39-01-2185

Part No 39-01-2185
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Mini-Fit Jr. Receptacle Housing, Dual Row, 18 Circuits, UL 94V-0, Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Color Natural
Connector Type Socket
Contact Gender Female
Country of Origin US
Current Rating 13 A
Depth 19.6 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Polyamide
Lead Free Lead Free
Length 39 mm
Max Operating Temperature 105 °C
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 18
Number of Positions 18
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 4.2 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Width 15.1 mm
Win Source Part Number 1174110-39-01-2185
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 39-01-2185 CAD Model

Description

The Molex LLC 1174110-39-01-2185 is a 2-row, 18-position natural colored socket connector.

  • Rows: 2
  • Positions: 18
  • Color: Natural
  • Pitch: 4.2 mm
  • Termination: Crimp
  • Voltage Rating: 600 V
  • Current Rating: 13 A
  • Housing Material: Polyamide
  • Approvals: CSA, TUV, and UL
  • Orientation: Straight
  • Contact Gender: Female
  • Length: 39 mm
  • Width: 15.1 mm
  • Depth: 19.6 mm
  • Compliance: Lead-free, RoHS compliant, and has a low halogen content
  • Mounting: Cable
  • Status: Limited supply and demand status and a medium popularity
  • Alternative Part Numbers: 0039-01-2185, 0039012185, 039012185, 39-01-2185., 39-01-2185.., 3901-2185, 39012185, and 5557-18R-210
