Same model may have multiple batches, images only for reference.

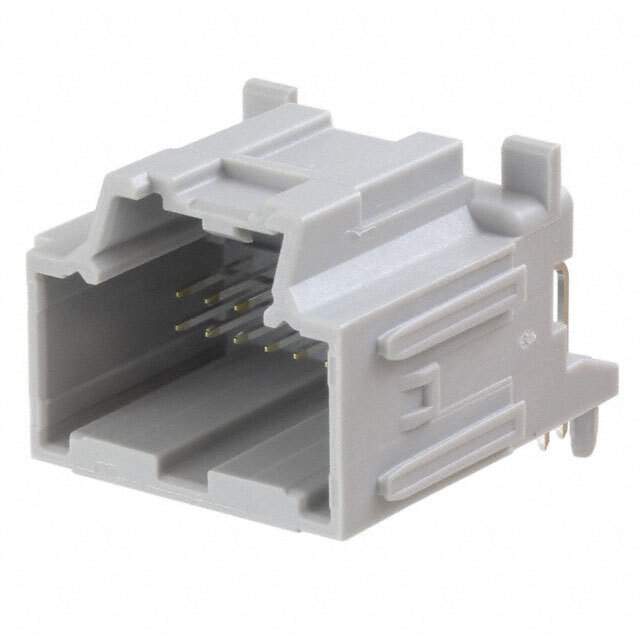

34691-0161 Real Image
Same model may have multiple batches, images only for reference.

34691-0161

Part No 34691-0161
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Stac64 Right-Angle Header Assembly, 16 Circuits, Polarization B, Gray, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Grey
Contact Material Brass
Contact Plating Tin
Country of Origin CN
Current Rating 10 A
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Thermoplastic
Max Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 16
Number of Contacts 16
Number of Positions 16
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating 500 V
Voltage Rating (DC) 500 V
Win Source Part Number 1214941-34691-0161
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 34691-0161 CAD Model

Description

The Molex, LLC 1214941-34691-0161 is a 16-position right-angle header connector with a pitch of 2.54mm.

  • Pitch: 2.54mm
  • Voltage Rating: 500V
  • Current Rating: 10A
  • Contact Material: brass
  • Contact Plating: tin
  • Housing Material: thermoplastic
  • Applications: circular connectors - housings
