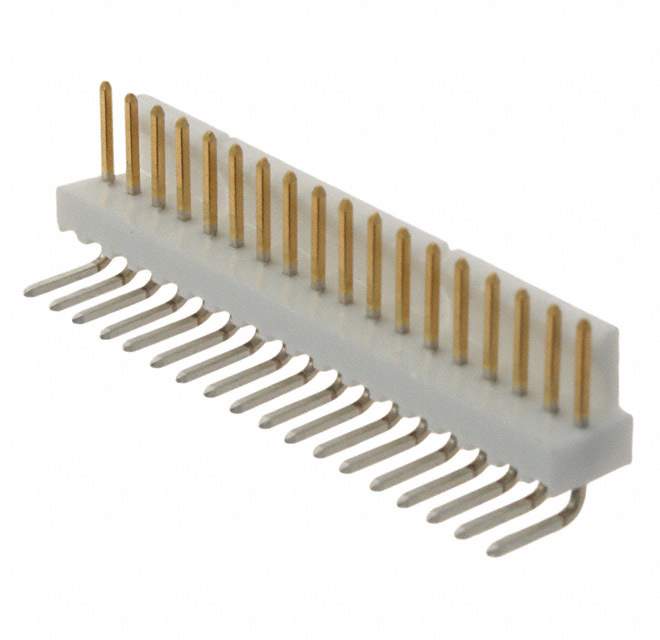

0022122184

Get a Quote

Part No	0022122184
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 18POS 2.54MM / Connector Header Through Hole, Right Angle 18 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	18
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 1 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.141" (3.58mm)
Insulation Height	0.250" (6.35mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Insulation Color	White
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	002212
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	002212-2184,A-7478-18A241,02212-2184,22-12-2184,2212-2184,WM7227,22122184
Standard Package	1
Win Source Part Number	1332987-0022122184
Ultra Librarian 3D Model	Ultra Librarian 0022122184 CAD Model

Description

The Molex 1332987-0022122184 is a header connector that is designed for use in a variety of electronic applications.

Positions: 18
Contact Gender: Male Pins
Packaging: Bulk
Mounting: Through-Hole
Temperature Range: -40°C to 105°C
