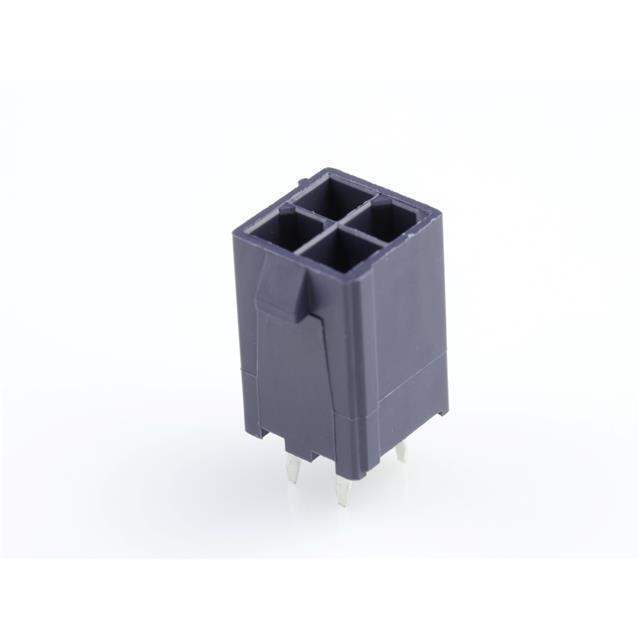

1724470204 Molex
Same model may have multiple batches, images only for reference.

172447-0204

Part No 172447-0204
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 4.2MM
Datasheet
172447-0204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307600-172447-0204
Category Connectors, Interconnects >Rectangular Connectors >Headers, Male Pins
Mfr Molex
Packaging  Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Ultra Librarian 3D Model Ultra Librarian 172447-0204 CAD Model

Description

Mini-Fit Jr. Header, Dual Row, Vertical, without Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V2, Tin (Sn) Plating, Glow-Wire Capable
