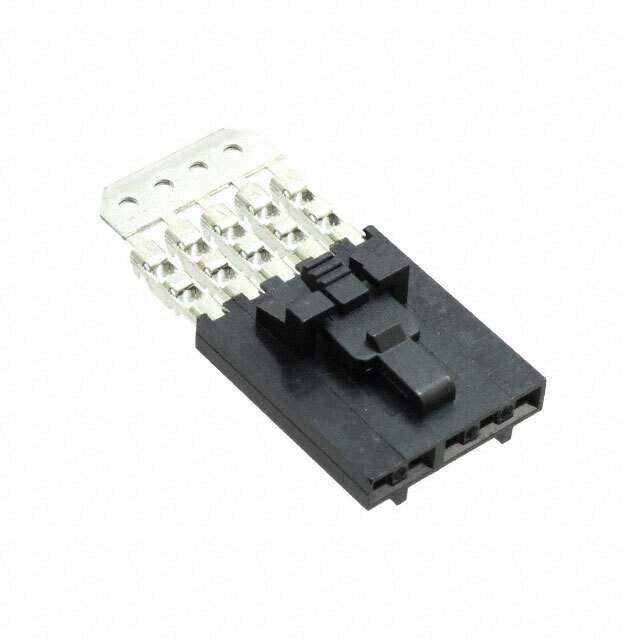

14-60-0052 Real Image
Same model may have multiple batches, images only for reference.

14-60-0052

Part No 14-60-0052
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount SL™ Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type IDC, Receptacle, Socket
Contact Gender Female
Contact Material Bronze
Contact Plating Tin
Contact Resistance 15 mΩ
Country of Origin US
Current Rating 3 A
Fastening Type Latch
Gender Receptacle
Glow Wire Compliant Non-compliant
Height 15.2 mm
Housing Color Black
Housing Material Polyester
Lead Free Lead Free
Length 12.7 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable, Free Hanging
Number of Circuits 5
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Straight
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Schedule B 8536694040, 8536694040
Termination IDC
Voltage Rating 250 V
Width 2.51 mm
Wire/Cable Gauge 24 AWG
Wire/Cable Type Discrete
Win Source Part Number 1147994-14-60-0052
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 14-60-0052 CAD Model

Description

The 1147994-14-60-0052 manufactured by Molex, LLC is a custom part IDC, receptacle, socket connector.

  • Positions: 5
  • Pitch: 2.54mm
  • RoHS Compliant: Yes
  • Application: Various applications including computer peripherals, telecommunications, and industrial equipment
  • Color: Black
  • Lead-Free: Yes
