Same model may have multiple batches, images only for reference.

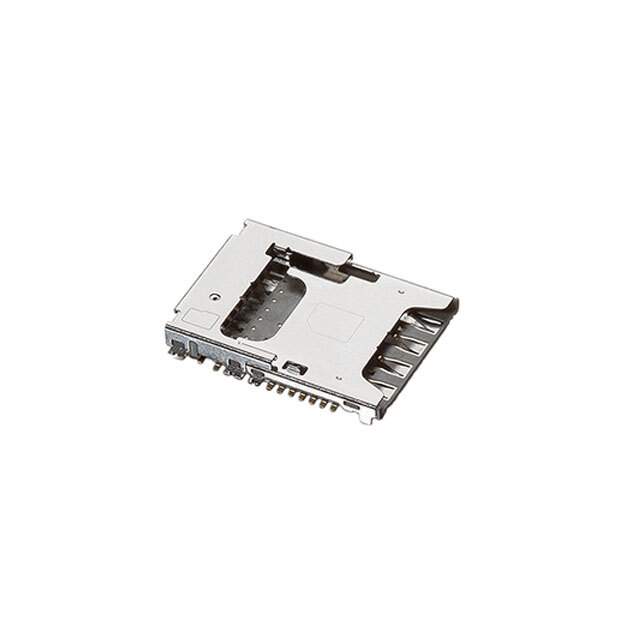

1046421610 Real Image
Same model may have multiple batches, images only for reference.

1046421610

Part No 1046421610
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description MSD/MSIM COMBO 2.10H EJECT-PULLE / 17 (16 + 1) Position Card Connector Combo - microSD™, Micro SIM Surface Mount, Right Angle Gold or Gold-Palladium
Datasheet
1046421610 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Molex
Series 104642
Package Tape & Reel
Card Type Combo - microSD™, Micro SIM
Number of Positions 17 (16 + 1)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Ejector Side Left
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.083" (2.10mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold or Gold-Palladium
Base Product Number 104642
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351852-1046421610
Ultra Librarian 3D Model Ultra Librarian 1046421610 CAD Model

Description

The 104642 series by Molex is a range of PC card sockets designed for use in a variety of applications.

  • Positions: 17 (16 + 1)
  • Card Type: microSD™ and Micro SIM
  • Connector Type: Socket
  • Ejector Type: With Ejector
  • Switch: Yes
  • Height Above Board: 0.083 inches (2.10mm)
  • Ejector Side: Left
  • Contact Finish: Gold or Gold-Palladium
  • Package: Tape and Reel
  • Mounting Type: Surface Mount, Right Angle
