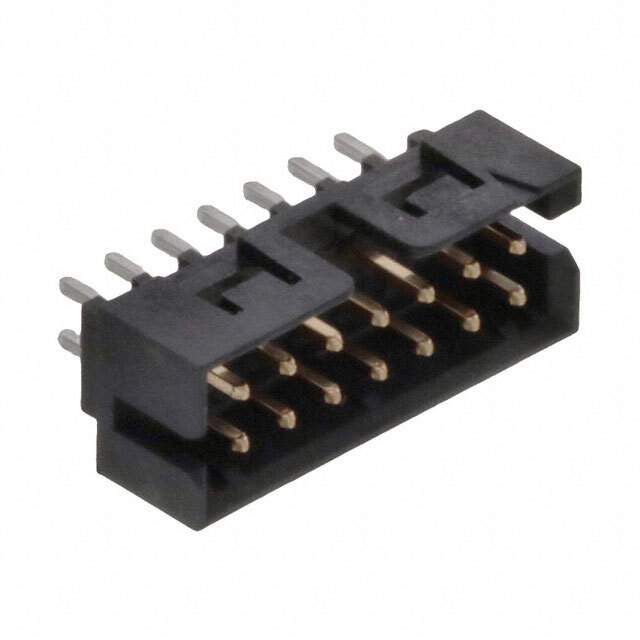

Same model may have multiple batches, images only for reference.

0878311419

Name: 0878311419
Brand: Molex, LLC
SKU: 855540
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0878311419
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	Milli-Grid 87831
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.098" (2.50mm)
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.97µin (0.050µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	125V
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Telecommunications
Base Product Number	087831
Standard Package	32 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	855540-0878311419
Ultra Librarian 3D Model	Ultra Librarian 0878311419 CAD Model

Alternative Products

Description

The 855540-0878311419 is a male pin header from Molex, LLC.

Series: Milli-Grid 87831
Positions: 14
Feature: Keying slot
Connector Type: Header
Contact Type: Male pin
Rows: 2
Termination: Solder
Fastening Type: Latch holder
Package: Tube
Standard Package: 32 pieces
Contact Material: Phosphor bronze
Mating Contact Finish: Gold with a thickness of 1.97µin (0.050µm)
Post Contact Finish: Tin with a thickness of 74.8µin (1.90µm)
Insulation Material: Polyamide (PA), nylon, glass filled
Insulation Color: Black
Mounting: Through hole
Shrouding: Shrouded - 4 wall
Row Spacing: 0.079" (2.00mm)
Temperature Range: -55°C to 105°C
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8536.69.4040
Status: Active
