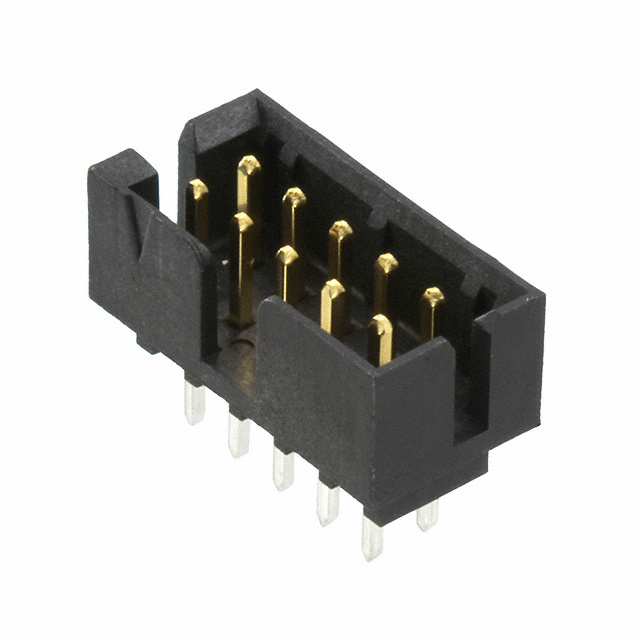

Same model may have multiple batches, images only for reference.

0878311020

Name: 0878311020
Brand: Molex, LLC
SKU: 1478767
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0878311020
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Molex
Series	Milli-Grid 87831
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.098" (2.50mm)
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	125V
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Telecommunications
Base Product Number	087831
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1478767-0878311020
Ultra Librarian 3D Model	Ultra Librarian 0878311020 CAD Model
