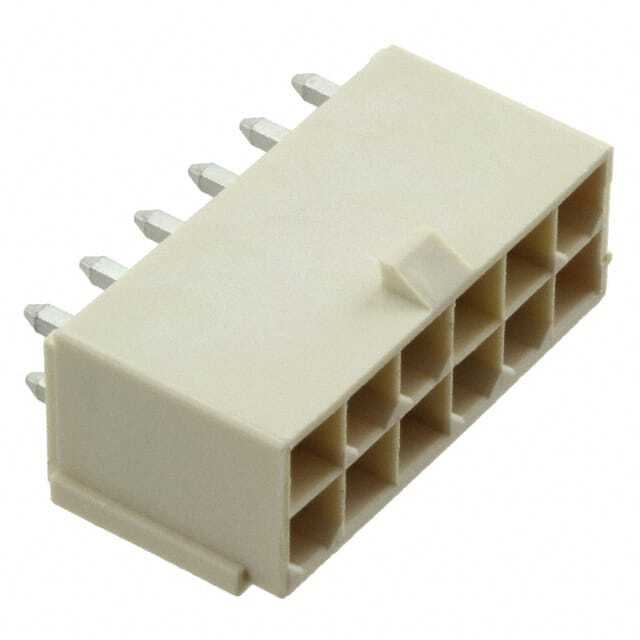

Same model may have multiple batches, images only for reference.

0874271242

Name: 0874271242
Brand: Molex, LLC
SKU: 848918
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0874271242
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 4.2MM / Connector Header Through Hole 12 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	Mini-Fit Jr 87427
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.504" (12.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	087427
Standard Package	250 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848918-0874271242
Ultra Librarian 3D Model	Ultra Librarian 0874271242 CAD Model

Alternative Products

Description

The Mini-Fit Jr 87427 is a header connector with male pins, designed for various electronic applications.

Connector Type: Header
Pin Gender: Male
Positions: 12
Features: Locking Ramp
Termination: Solder
Mounting: Through Hole
Insulation Material: Polyamide (PA46), Nylon 4/6
Pitch: 0.165" (4.20mm)
Manufacturer: Molex, LLC
Applications: General Purpose, Industrial, and Telecommunications
Flammability Rating: UL94 V-0
Product Status: Active
