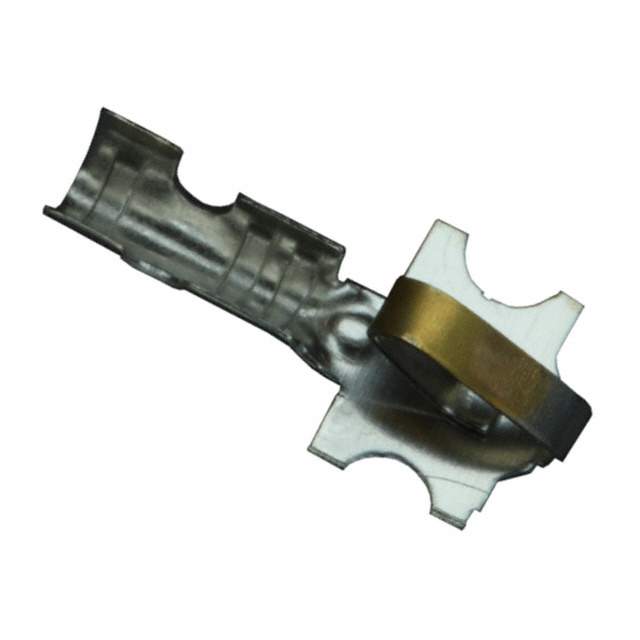

Same model may have multiple batches, images only for reference.

08-55-0101

Name: 08-55-0101
Brand: Molex, LLC
SKU: 1041228
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	08-55-0101
Manufacturer	Molex, LLC
Catalog	Terminals
Description	KK® 254 Crimp Terminal, 22-30 AWG, Reel, Selective Gold (Au), Nickel (Ni) Under Plating
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	0101
Connector Type	Connector, Crimp, PCB, Signal
Contact Gender	Female
Contact Material	Brass
Contact Plating	Gold
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	4 A
Depth	2.1 mm
Gender	Female
Height	3.68 mm
Lead Free	Yes
Length	9.7 mm
Max Current Rating	4 A
Maximum Operating Temperature	75 °C
Min Operating Temperature	0 °C
Mount	Cable
Number of Contacts	1
Orientation	Straight
Packaging	Cut Tape
Plating	Nickel
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Wire/Cable Gauge	22 AWG
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	30 AWG
Win Source Part Number	1041228-08-55-0101
Categories	Terminals
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 08-55-0101 CAD Model

Description

The Molex 1041228-08-55-0101 electronic component is a low popularity item that comes in a cut tape package.

Category: Connector, Crimp, PCB, Signal
Voltage Rating: 250 V
Current Rating: 4 A
Maximum Operating Temperature: 75 °C
ECCN: EAR99
