Same model may have multiple batches, images only for reference.

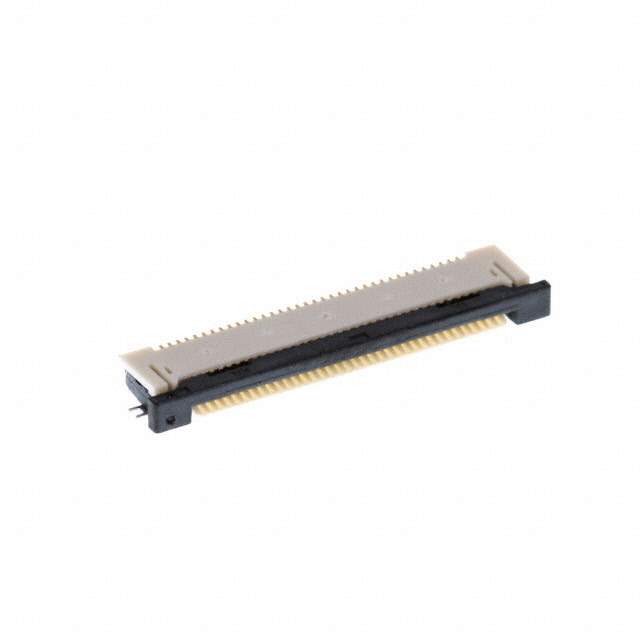

0541323662 Real Image
Same model may have multiple batches, images only for reference.

0541323662

Part No 0541323662
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 36POS 0.5MM R/A / 36 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series Easy-On 54132
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 36
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color White
Actuator Color Black
Mating Cycles 20
Base Product Number 054132
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 856507-0541323662
Ultra Librarian 3D Model Ultra Librarian 0541323662 CAD Model

Description

The 856507-0541323662 is a FFC/FPC connector assembly from the Easy-On 54132 series. It features 36 positions with a pitch of 0.020" (0.50mm).

  • Series: Easy-On 54132
  • Positions: 36
  • Pitch: 0.020" (0.50mm)
  • Features: solder retention and zero insertion force (ZIF)
  • Contact Finish: gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Package: tape & reel
  • Application: FFC/FPC
  • Voltage Rating: 50V
  • Height Above Board: 0.079" (2.00mm)
  • Mounting: surface mount, right angle
  • Manufacturer: Molex, LLC
  • Status: active
