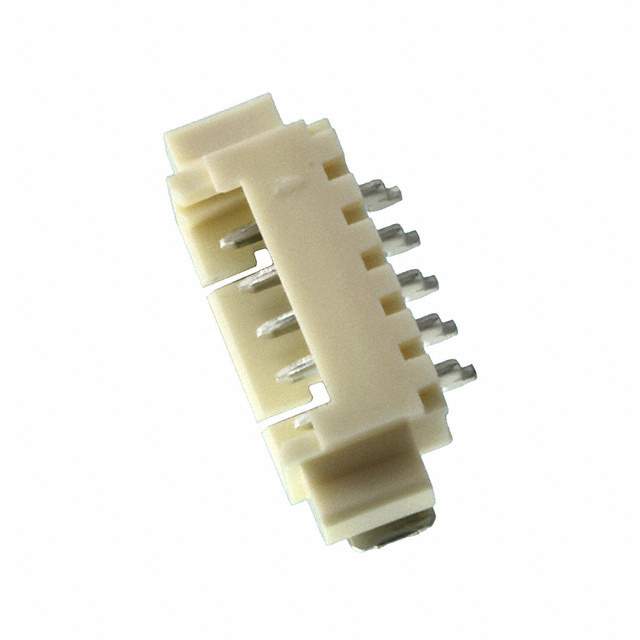

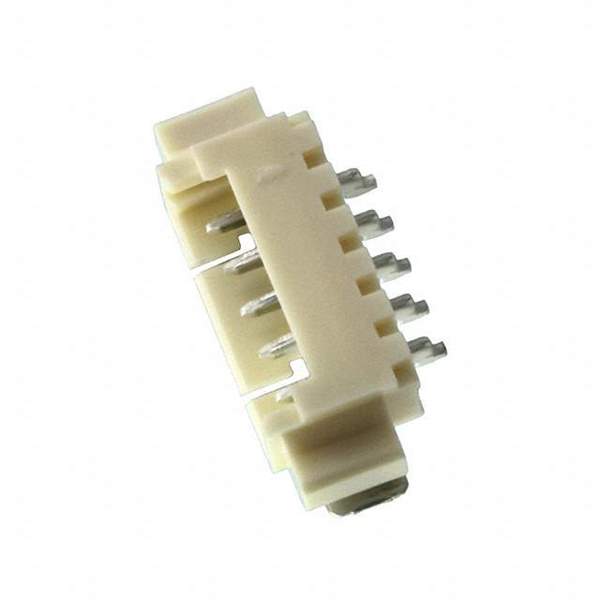

0532610571 Real Image
Same model may have multiple batches, images only for reference.

0532610571

Part No 0532610571
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 5POS 1.25MM / Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series PicoBlade 53261
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.049" (1.25mm)
Number of Positions 5
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.134" (3.40mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 053261
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000 pcs
Win Source Part Number 1380391-0532610571
Ultra Librarian 3D Model Ultra Librarian 0532610571 CAD Model

Description

The 1380391-0532610571 is a male pin header from Molex, LLC.

  • Series: PicoBlade 53261
  • Category: Rectangular Connectors
  • Positions: 5
  • Features: Solder Retention
  • Connector Type: Header
  • Contact Gender: Male Blade
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA46), Nylon 4/6
  • Style: Board to Cable/Wire
  • Mating Pitch: 0.049" (1.25mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 39.4µin (1.00µm)
  • Contact Finish - Post: Tin
  • Insulation Color: Natural
  • Mounting Type: Surface Mount, Right Angle
  • Shrouding: Shrouded - 4 Wall
  • Insulation Height: 0.134" (3.40mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package: 1,000 pcs
