0530140210+

Part No 0530140210+
Manufacturer Molex, LLC
Catalog Rectangular Connectors

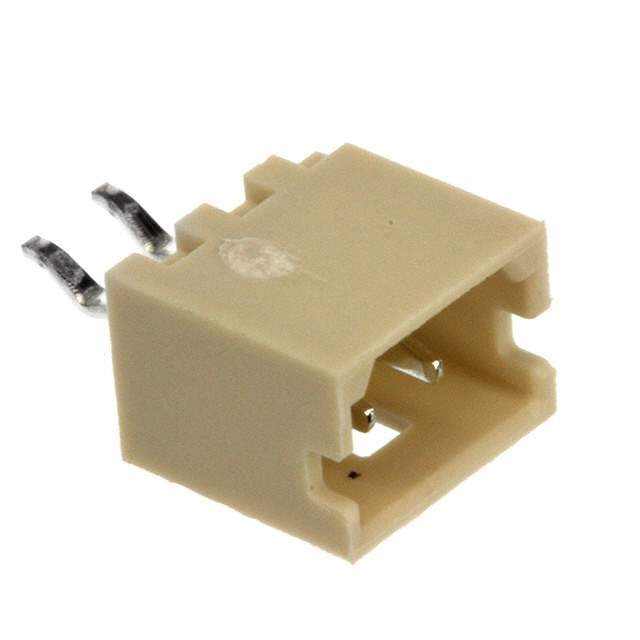

Description CONN HEADER 2MM 2POS TIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.122" (3.10mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.327" (8.30mm)
Insulation Height 0.230" (5.85mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications General Purpose, Telecommunications
Win Source Part Number 197122-0530140210+
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0530140210+ CAD Model

Description

Description of 0530140210+

The 0530140210+ is an advanced component tailored for high-performance requirements. Its compatibility with a wide range of devices makes it a preferred choice among engineers.

Features and Benefits

  • High Compatibility: Works well with various electronic systems and devices.
  • Enhanced Performance: Provides superior operational performance.
  • Durability: Designed to last longer even under rigorous conditions.

Applications

  • Telecommunication Equipment
  • Automotive Electronics
  • Embedded Systems

Choose this component to ensure high-quality performance and reliability in your electronic projects.
