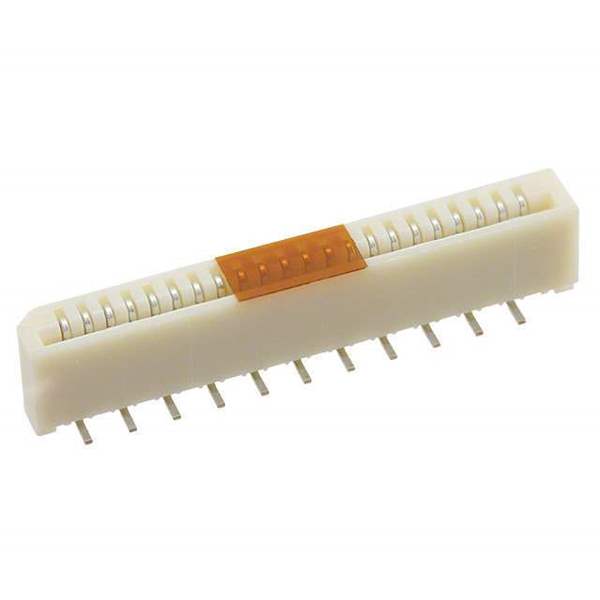

0528082271 Molex, LLC
Same model may have multiple batches, images only for reference.

0528082271

Part No 0528082271
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.0 FPC CONN ZIF FOR SMT (ST)WITH TAPE -LEAD FREE- | CONN FFC FPC VERT 22POS 1MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Flat Flex Type FFC, FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 22
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.199" (5.05mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Dielectric Material Polyphenylene Sulfide (PPS)
Voltage Rating 125V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Mating Cycles 10
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120693-0528082271
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0528082271 CAD Model

Description

The Molex Connector is a high-quality electronic component designed for use in a variety of applications.

  • Contact material: phosphor bronze
  • Dielectric material: polyphenylene sulfide (PPS)
  • Pitch: 0.039" (1.00mm)
  • Contact finish: tin bismuth
  • Height above board: 0.199" (5.05mm)
  • Mounting style: surface mount
  • Termination: solder
  • Used for: FFC, FPC flat flex type
  • Voltage rating: 125V
  • Current rating: not specified
  • Supply and demand status: limited
