Same model may have multiple batches, images only for reference.

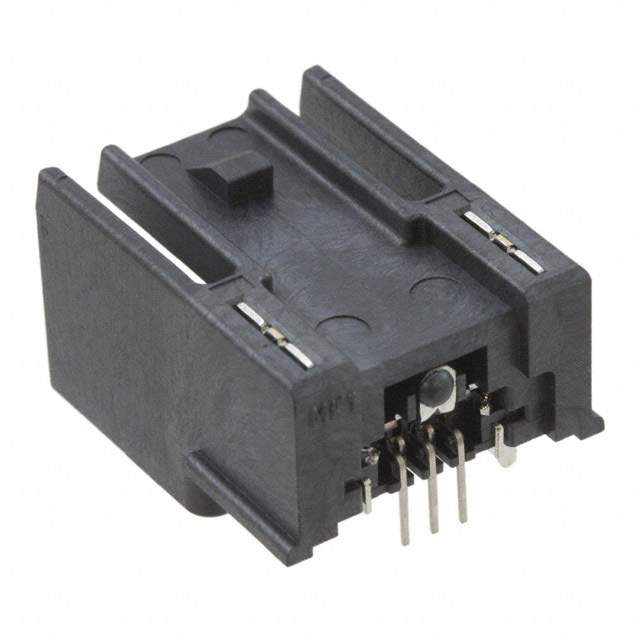

0496160711 Real Image
Same model may have multiple batches, images only for reference.

0496160711

Part No 0496160711
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN FMALE HDR USB2.0 MINI B R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 7 Weeks
Features USB - mini B USB 2.0 Female Header Connector 5 Position Through Hole, Right Angle
Manufacturer Molex, LLC
Series HSAutoLink 49616
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name 049616
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 049616-0711, 049616-0711-E, 0496160711-E, 49616-0711, 49616-0711-E, 496160711, 496160711-E, WM17535
Quantity per package 48
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904597-0496160711
Ultra Librarian 3D Model Ultra Librarian 0496160711 CAD Model

Description

The Molex 904597-0496160711 is a USB mini B USB 2.0 female header connector.

  • Series: HSAutoLink 49616 series
  • Manufacturer: Molex, LLC
  • Win Source Part Number: 904597-0496160711
  • Popularity: high
  • Supply and Demand: balanced
  • Package: tray
  • Mounting Style: through hole, right angle
  • Operating Temperature Range: -40°C to 85°C
