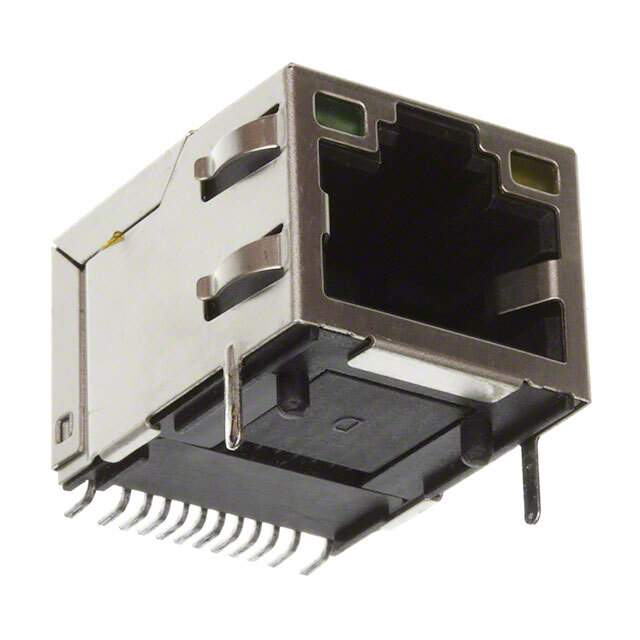

0480749101 Real Image
Same model may have multiple batches, images only for reference.

0480749101

Part No 0480749101
Manufacturer Molex, LLC
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Molex, LLC
Series 48074
Package Tape & Reel
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Surface Mount
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.524" (13.31mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
Base Product Number 048074
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856147-0480749101
Ultra Librarian 3D Model Ultra Librarian 0480749101 CAD Model

Description

The 856147-0480749101 modular connector jack with magnetics is a high-quality component designed for use in networking applications.

  • Height Above Board: 0.524" (13.31mm)
  • Orientation: 90° angle (Right)
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
  • Applications: 10/100 Base-T, AutoMDIX
  • LED: Green-Yellow
  • Standard Package: 100 pcs
  • Contact Finish: Gold
  • Manufacturer: Molex, LLC
  • Product Status: Active
