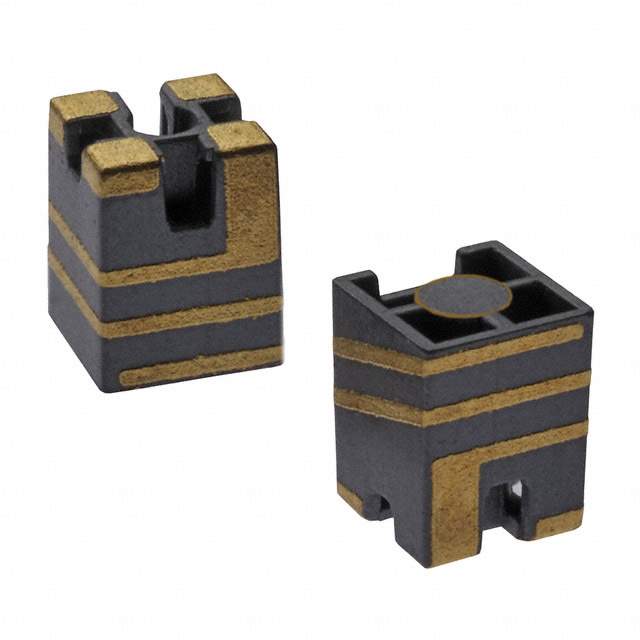

0479480001 Real Image
Same model may have multiple batches, images only for reference.

0479480001

Part No 0479480001
Manufacturer Molex, LLC
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Molex, LLC
Series 47948
Package Tape & Reel
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.483.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -9dB
Gain 3dBi
Power - Max 2 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.157" (4.00mm)
Applications Bluetooth, WLAN, Zigbee™
Base Product Number 047948
Standard Package 1,800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 852366-0479480001
Ultra Librarian 3D Model Ultra Librarian 0479480001 CAD Model

Description

The 852366-0479480001 is a chip antenna designed for RF and wireless applications.

  • Series: 47948
  • Status: active
  • Termination: solder
  • Packaging: tape & reel package
  • Standard Package: 1,800 pcs
  • Power Rating: 2 W
  • Frequency Range: 2.4GHz to 2.483.5GHz
  • Height: 0.157" (4.00mm)
  • Gain: 3dBi
  • Applications: Bluetooth, WLAN, and Zigbee™
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS Code: 8517.71.0000
