Same model may have multiple batches, images only for reference.

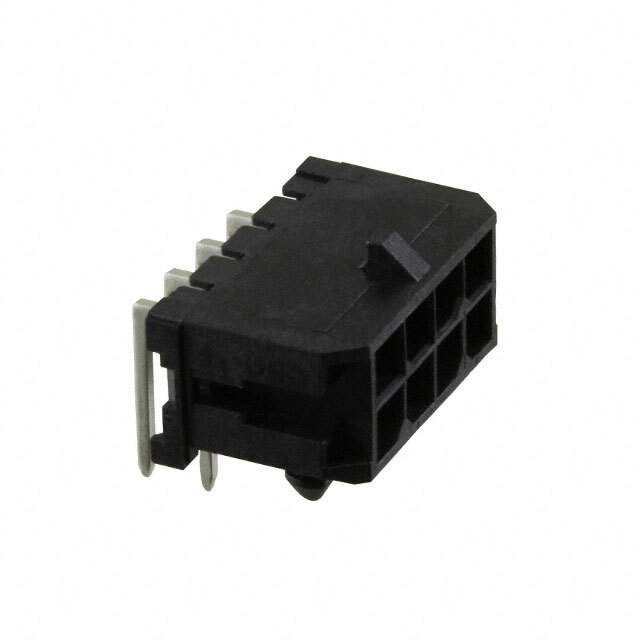

0430450802 Real Image
Same model may have multiple batches, images only for reference.

0430450802

Part No 0430450802
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 3MM
Datasheet
0430450802 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm)
Manufacturer Molex, LLC
Series Micro-Fit 3.0 43045
Package Tray
Mounting Through Hole, Right Angle
Family Name 043045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 430-45-0802-P, 43045-0802, 43045-0802-P, 43045-0802-TR120, 43045-0802-TR81, 430450802, WM1822, WM1822-NDR
Quantity per package 1440
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906829-0430450802
Ultra Librarian 3D Model Ultra Librarian 0430450802 CAD Model

Description

The 906829-0430450802 is an 8-position connector header from Molex, LLC.

  • Series: Micro-Fit 3.0 43045
  • Mounting: Through-hole, right-angle technology
  • Pitch-Mating: 0.118 inches (3.00mm)
  • Insulation: Liquid crystal polymer (LCP)
  • Contact Material: Phosphor bronze
  • Contact Finish (Mating): Gold, thickness of 20.0 microns
  • Post-Contact Finish: Gold, thickness of 3.00 microns
  • Current Rating: 4.7A per contact
  • Operating Temperature: -55 degrees Celsius to 125 degrees Celsius
  • Flammability Rating: UL94 V-0
  • Packaging: Trays
