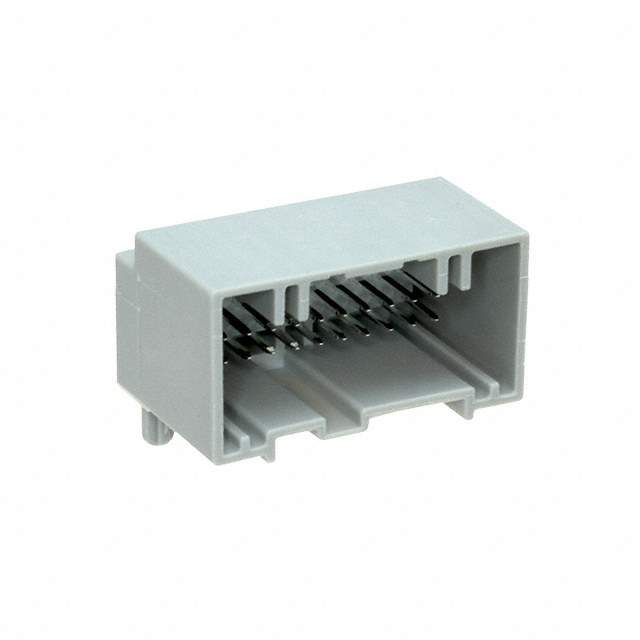

0307005207

Get a Quote

Part No	0307005207
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	H-DAC 64 30700
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.311" (7.90mm)
Contact Length - Post	0.131" (3.33mm)
Overall Contact Length	-
Insulation Height	0.734" (18.64mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled
Features	Board Guide
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	-
Insulation Color	Gray
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	Automotive
Base Product Number	030700
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,053 pcs
Win Source Part Number	1380748-0307005207
Ultra Librarian 3D Model	Ultra Librarian 0307005207 CAD Model

Description

The 1380748-0307005207 is a male pin header connector from Molex, LLC. It is a part of the Connectors, Interconnects category, specifically designed for use in rectangular connectors.

Series: H-DAC 64 30700
Number of Positions: 20
Features: Board Guide
Termination: Solder
Contact Material: Copper Alloy
Application: Automotive
Operating Temperature: -40°C ~ 125°C
Standard Package: 1,053 Pieces
