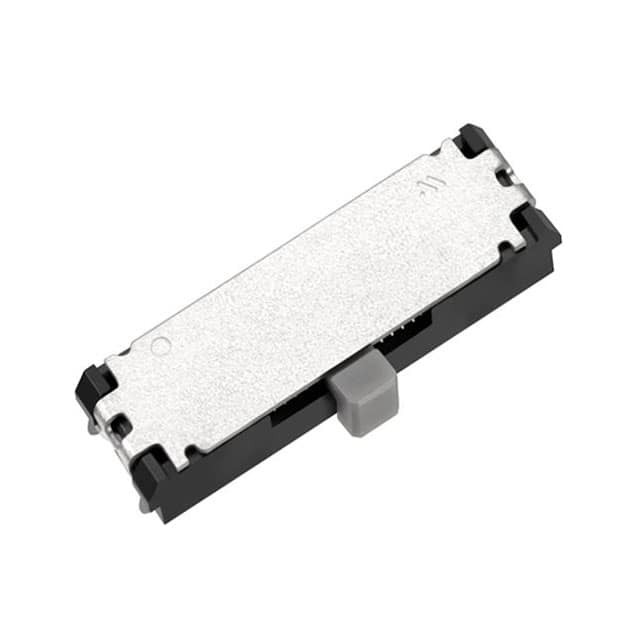

R-666804 Mitsumi
Same model may have multiple batches, images only for reference.

R-666804

Part No R-666804
Manufacturer Mitsumi
Catalog Slide Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr Mitsumi Electric Company Ltd
Series SSA
Package Tape & Reel (TR)
Circuit SP3T
Contact Timing Not Specified
Switch Function Mom-On-Mom
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 4 V
Actuator Type Standard
Actuator Length 1.00mm
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Switch Travel 1.50mm
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Operating Force 153gf
Base Product Number SSA-131
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1315614-R-666804
Ultra Librarian 3D Model Ultra Librarian R-666804 CAD Model

Description

The SSA series slide switch from Mitsumi Electric Company Ltd is a SP3T circuit with a mom-on-mom switch function.

  • Circuit: SP3T
  • Switch Function: Mom-On-Mom
  • Voltage Rating: 4V
  • Current Rating: 300mA (DC)
  • Switch Travel: 1.5mm
  • Actuator Length: 1mm
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: 50,000 Cycles
  • Operating Force: 153gf
  • Mounting: Surface Mount, Right-Angle
  • Termination Style: SMT Tab
  • HTSUS Code: 8536.50.9050
