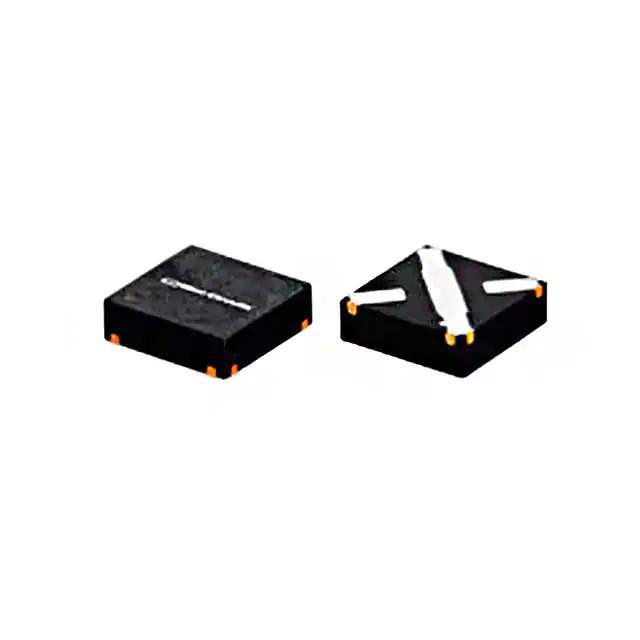

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 50MHz ~ 6GHz
P1dB 22.9dBm
Gain 14.1dB
Noise Figure 2.1dB
RF Type CATV, DBS, LTE, MMDS, Wireless LAN
Voltage - Supply 4V, 4.5V, 5V
Current - Supply 146mA
Test Frequency 4GHz
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Supplier Device Package FG873
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 724528-LHA-1+
Ultra Librarian 3D Model Ultra Librarian LHA-1+ CAD Model

Description

The 724528-LHA-1+ is a high-performance RF amplifier from Mini-Circuits.

  • Frequency Range: 50MHz to 6GHz
  • Gain: 14.1dB
  • Noise Figure: 2.1dB
  • Applications: CATV, DBS, LTE, MMDS, Wireless LAN
  • Supply Voltage: 4V, 4.5V, or 5V
  • Current Consumption: 146mA
  • Package: tape & reel
  • Standard Package: 500 pcs
  • Product Status: Active
