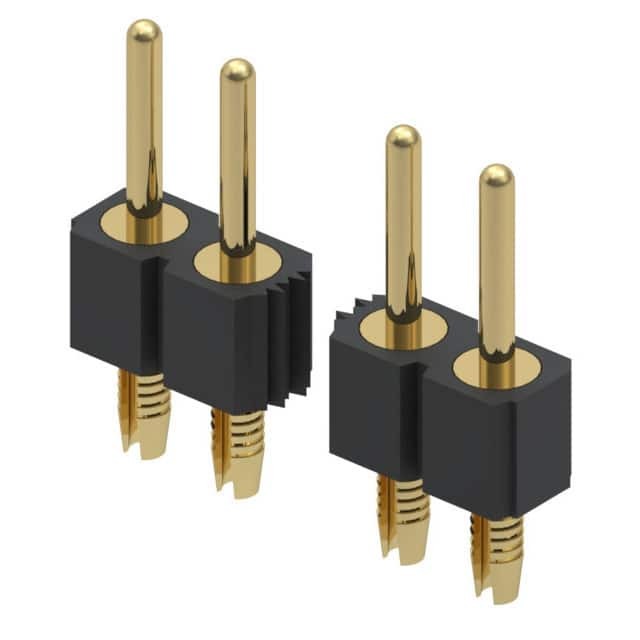

The 1201754-800-10-052-61-001000 is a 52-position male pin header connector from Mill-Max Manufacturing Corp.

• Manufacturer: Mill-Max Manufacturing Corp.
• Product Name: 1201754-800-10-052-61-001000
• Connector Style: Board-to-Board
• Positions: 52
• Pitch: 0.100" (2.54mm)
• Mounting Type: Through Hole
• Contact Material: Brass Alloy
• Contact Finish (Mating): Gold
• Contact Finish (Post): Gold
• Contact Finish Thickness (Mating): 10.0µin (0.25µm)
• Contact Finish Thickness (Post): 10.0µin (0.25µm)
• Shrouding: Unshrouded
• Contact Shape: Circular
• Contact Length (Mating): 0.191" (4.85mm)
• Contact Length (Post): 0.104" (2.64mm)
• Overall Contact Length: 0.405" (10.29mm)
• Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
• Insulation Height: 0.110" (2.79mm)
• ECCN: EAR99
• REACH: Unaffected
• Packaging: Bulk
• Standard Package: 1
