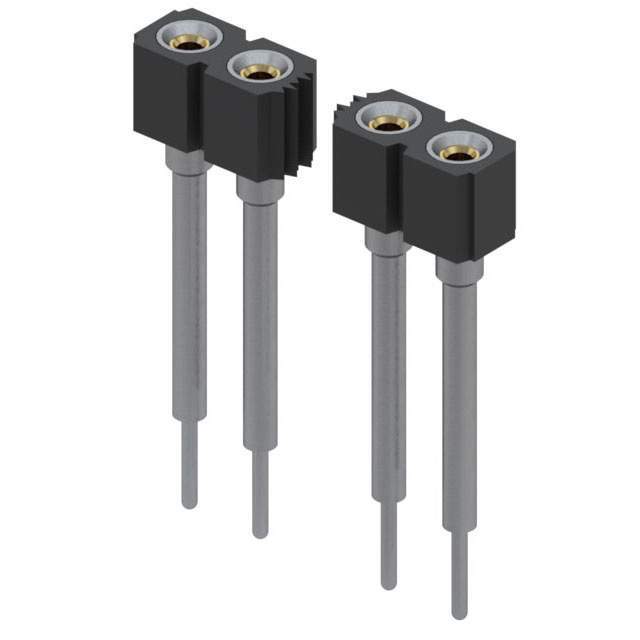

316-43-136-41-008000 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

316-43-136-41-008000

Part No 316-43-136-41-008000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN SCKT STRIP 36PIN .100 L.472 / Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 316
Packaging Bulk
Connector Type Elevated Socket
Contact Type Female Socket
Style Board to Board
Number of Positions 36
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.472" (12.00mm)
Contact Length - Post 0.118" (3.00mm)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 3A
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 200μin (5.08μm)
Win Source Part Number 772392-316-43-136-41-008000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 316
Introduction Date May 07, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 316-43-136-41-008000 CAD Model

Description

The Mill-Max Manufacturing Corp.'s 316-43-136-41-008000 is a board-to-board connector with an elevated socket.

  • Positions: 36
  • Mounting: Through Hole
  • Current Rating: 3A
  • Contact Material: Beryllium Copper
  • Popularity: 44%
  • Supply and Demand: Limited
  • Material Flammability Rating: UL94 V-0
  • Estimated EOL Date: 2027
