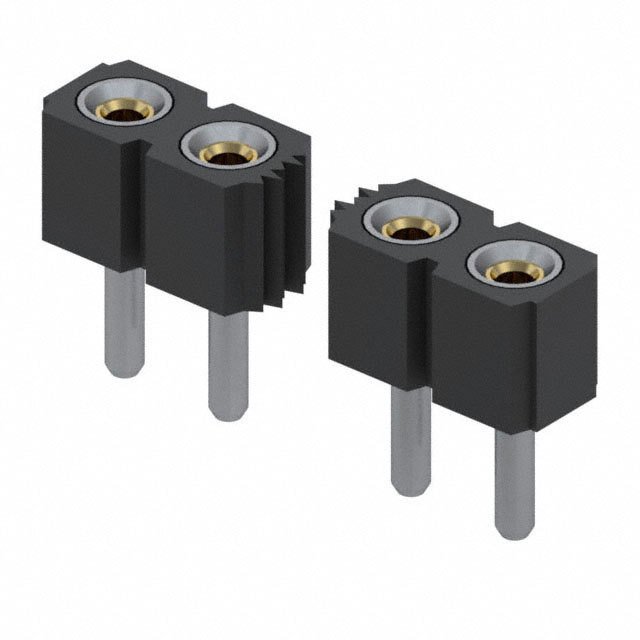

Same model may have multiple batches, images only for reference.

315-93-141-41-001000

Name: 315-93-141-41-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 447215
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	315-93-141-41-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN STRIP SOCKET 41POS LO PRO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Bulk
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	41
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.110" (2.79mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	100V, 150VDC
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	1032336-315-93-141-41-001000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1
Ultra Librarian 3D Model	Ultra Librarian 315-93-141-41-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. connector is a board-to-board style receptacle with 41 female socket contacts.

Fastening Type: Push-pull
Mounting: Through-hole
Voltage Rating: 100V
Current Rating: 3A
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
Material Flammability Rating: UL94 V-0
Pitch-Mating: 2.54mm
Contact Finish-Mating: Gold
Contact Finish-Thickness-Mating: 30μin (0.76μm)
Contact Finish-Post: Tin
Contact Finish-Thickness-Post: 200μin (5.08μm)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Market Popularity: Popular
Supply and Demand: Balance
Threat of Being Fake: Medium
