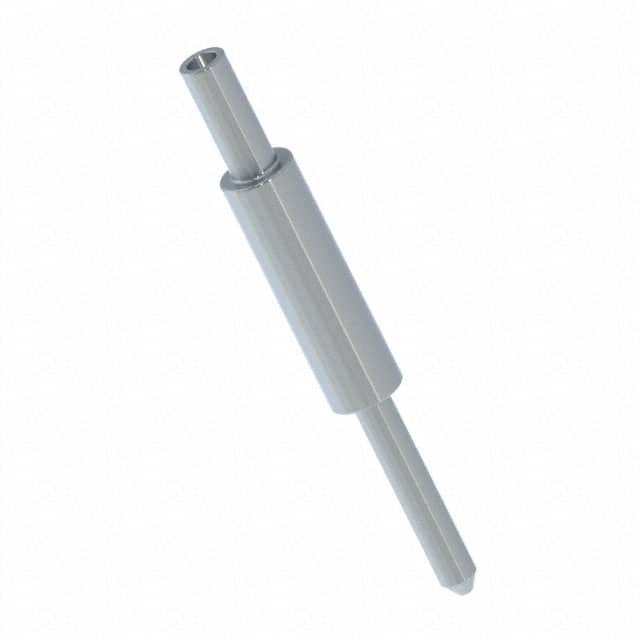

Part No 3118-2-00-80-00-00-08-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PC PIN CIRC
Datasheet
3118-2-00-80-00-00-08-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin, Single Post Connectors
Mfr Mill-Max Manufacturing Corp.
Series 3118
Package Bulk
Product Status Active
Terminal Type PC Pin
Terminal Style Single End
Pin Size - Above Flange 0.025" (0.64mm) Dia
Length - Above Flange 0.150" (3.81mm)
Length - Below Flange 0.082" (2.08mm)
Length - Overall 0.402" (10.20mm)
Flange Diameter 0.050" (1.27mm)
Mounting Hole Diameter 0.035" (0.89mm)
Mounting Type Through Hole
Termination Swage
Insulation Non-Insulated
Board Thickness 0.062" (1.57mm)
Contact Material Brass Alloy
Contact Finish Tin
Contact Finish Thickness 200.0µin (5.08µm)
Base Product Number 3118-2
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 906535-3118-2-00-80-00-00-08-0
Ultra Librarian 3D Model Ultra Librarian 3118-2-00-80-00-00-08-0 CAD Model

Description

The 906535-3118-2-00-80-00-00-08-0 is a PC pin terminal connector from Mill-Max Manufacturing Corp manufactured by Mill-Max Manufacturing Corp.

  • Series: 3118 series
  • Package: Bulk package with 1,000 pieces
  • Termination: Swage termination
  • Mounting: Through-hole mounting
  • Contact Material: Brass alloy with a tin finish
  • Overall Length: 0.402" (10.20mm)
  • Mounting Hole Diameter: 0.035" (0.89mm)
  • Flange Diameter: 0.050" (1.27mm)
  • Application: Various applications that require reliable and secure connections to printed circuit boards
