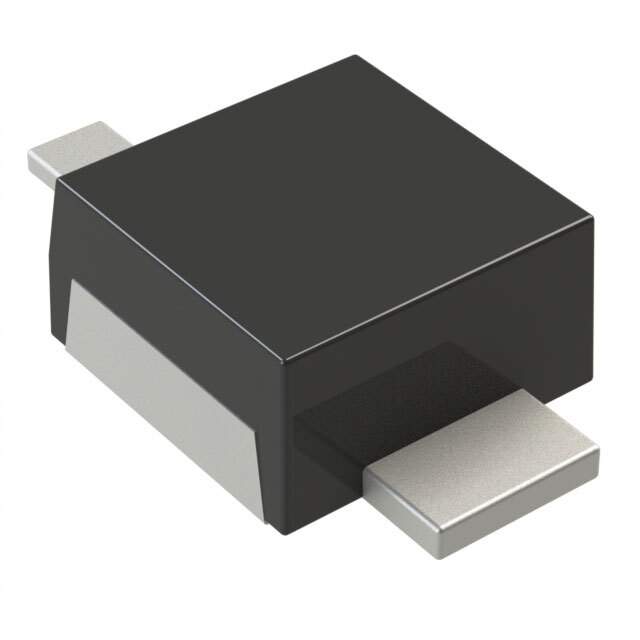

UPT12E3/TR13 Real Image
Same model may have multiple batches, images only for reference.

UPT12E3/TR13

Part No UPT12E3/TR13
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description TVS DIODE 12VWM POWERMITE
Datasheet
UPT12E3/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.8V
Max Clamping Voltage 21.6V
Peak Pulse Current(Ippm) 6.94A
Power Dissipation - Pd 1000W (1kW)
Applications General Purpose
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Powermite 1 (DO216-AA)
Win Source Part Number 104153-UPT12E3/TR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPT12E3/TR13 CAD Model

Description

The Microsemi Corporation Zener is a unidirectional device that features a STAND-OFF Voltage (Vwm) of 12V and a Minimum Breakdown Voltage of 13.8V.

  • GPTDescription: The device has a Max Clamping Voltage of 21.6V and a Peak Pulse Current(Ippm) of 6.94A.
  • GPTDescription: The Zener is mounted on a SMD (SMT) and is packaged in a Powermite 1 (DO216-AA) case.
  • GPTDescription: The device has a Type of Zener and is designed for use in Circuit Protection.
  • GPTDescription: The Microsemi Corporation Zener has a Power Dissipation - Pd of 1000W (1kW) and can operate in a temperature range of -65°C to 150°C (TJ).
  • GPTDescription: The Supply and Demand Status of the device is Balance.
