Same model may have multiple batches, images only for reference.

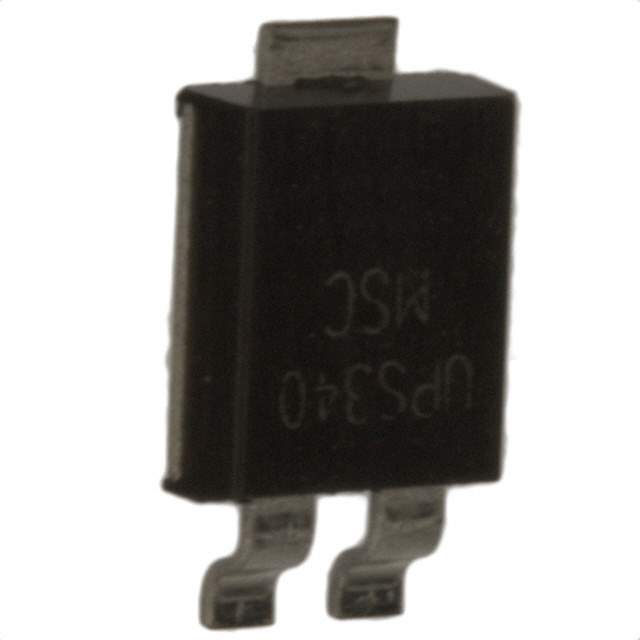

UPS340E3/TR13 Real Image
Same model may have multiple batches, images only for reference.

UPS340E3/TR13

Part No UPS340E3/TR13
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A POWERMITE3
Datasheet
UPS340E3/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Capacitance @ Vr, F 180pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Powermite 3
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 126231-UPS340E3/TR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPS340E3/TR13 CAD Model

Description

The Microsemi Corporation UPS340E3/TR13 is a Schottky diode with a Powermite 3 package type.

  • GPTDescription: The device has a voltage - DC reverse (Vr) (Max) of 40V, and a current - average rectified (Io) of 3A.
  • GPTDescription: The device has a voltage - forward (Vf) (Max) @ If of 500mV @ 3A and a current - reverse leakage @ Vr of 500μA @ 40V.
  • GPTDescription: The device has a capacitance @ Vr, F of 180pF @ 4V, 1MHz.
  • GPTDescription: The device is commonly used in discrete semiconductor products and has a fast recovery speed of 200mA (Io).
  • GPTDescription: The supply and demand status of the device is balanced.
